HC-49/U-S4194304ABJB

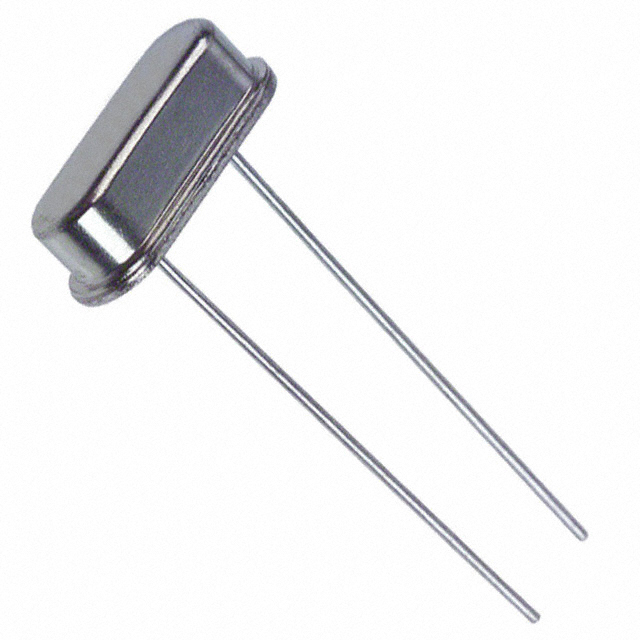

lmages are for reference only.HC-49/U-S4194304ABJB
CRYSTAL 4.194304MHZ 18PF TH
DatasheetHC-49/US
85,946 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4.194304 MHz ±30ppm Crystal 18pF 150 Ohms HC-49/US
HC-49/U-S4194304ABJB
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | Citizen Finedevice Co Ltd |
| Series | HC49US |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | MHz Crystal |
| Frequency | 4.194304 MHz |
| Frequency Stability | ±50ppm |
| Frequency Tolerance | ±30ppm |
| Load Capacitance | 18pF |
| ESR (Equivalent Series Resistance) | 150 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -10°C ~ 60°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | HC-49/US |
| Size / Dimension | 0.453" L x 0.183" W (11.50mm x 4.66mm) |
| Height - Seated (Max) | 0.138" (3.50mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |
| Part Number | HC-49/U-S4194304ABJB | HC-49/U-S40000000ABJB | HC-49/U-S40000000ABJB | HC-49/U-S4000000ABEB |
| Manufacturer | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CRYSTAL 4.194304MHZ 18PF TH | CRYSTAL 40.0000MHZ 18PF TH | CRYSTAL 40.0000MHZ 18PF TH | CRYSTAL 4.0000MHZ 12PF TH |
| Series | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd |
| Packaging | Bulk | Bulk | Bulk | Bulk |
