HC-49/U-S9000000ABJB
lmages are for reference only.HC-49/U-S9000000ABJB
CRYSTAL 9.0000MHZ 18PF TH
DatasheetHC-49/US
50,851 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
9 MHz ±30ppm Crystal 18pF 100 Ohms HC-49/US
HC-49/U-S9000000ABJB
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | Citizen Finedevice Co Ltd |
| Series | HC49US |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | MHz Crystal |
| Frequency | 9 MHz |
| Frequency Stability | ±50ppm |
| Frequency Tolerance | ±30ppm |
| Load Capacitance | 18pF |
| ESR (Equivalent Series Resistance) | 100 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -10°C ~ 60°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | HC-49/US |
| Size / Dimension | 0.453" L x 0.183" W (11.50mm x 4.66mm) |
| Height - Seated (Max) | 0.138" (3.50mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
|

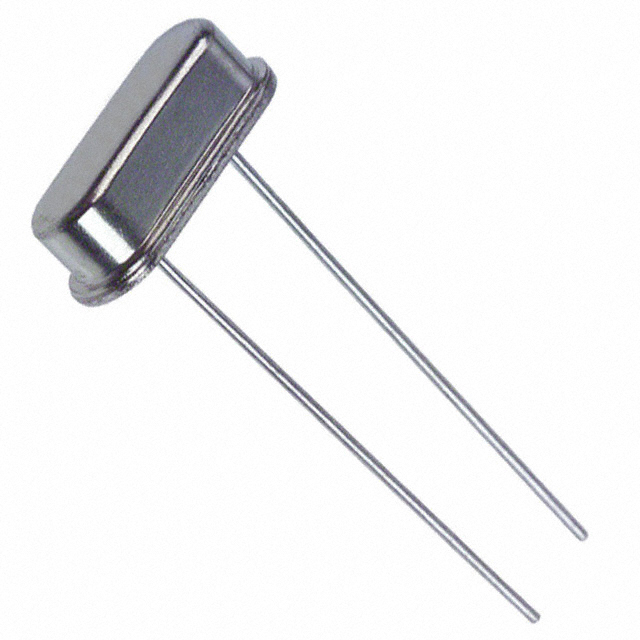

| Part Number | HC-49/U-S9000000ABJB | HC-49/U-S9000000ABJB | HC-49/U-S9216000ABJB | HC-49/U-S9216000ABJB |
| Manufacturer | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CRYSTAL 9.0000MHZ 18PF TH | CRYSTAL 9.0000MHZ 18PF TH | CRYSTAL 9.2160MHZ 18PF TH | CRYSTAL 9.2160MHZ 18PF TH |
| Series | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd |
| Packaging | Bulk | Bulk | Bulk | Bulk |
