Product CatalogPart Number
HC2-HTM-AC200V-F
Manufacturer
Panasonic Electric WorksDescription
RELAY GEN PURPOSE DPDT 7A 200V
Datasheet
DatasheetPackage
-
In Stock
21,931 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
HC2-HTM-AC200V-F
HC2-HTM-AC200V-F

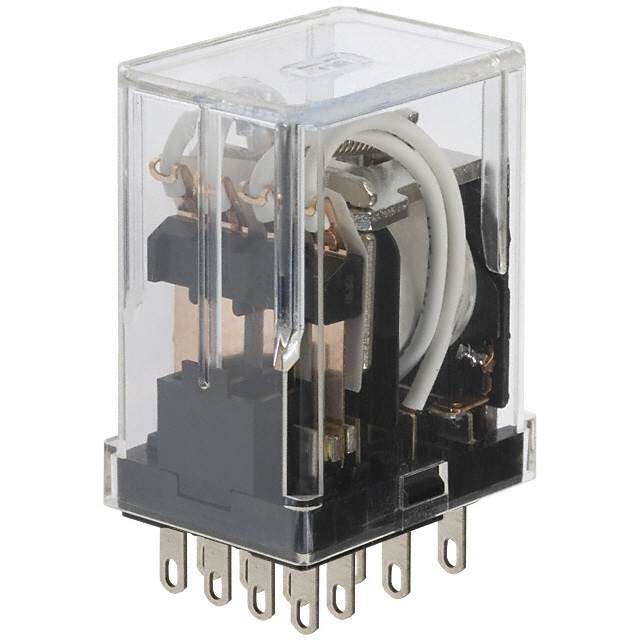

lmages are for reference only.Payment Methods
Delivery Services
General Purpose Relay DPDT (2 Form C) 200VAC Coil Chassis Mount
Quick Inquiry
HC2-HTM-AC200V-F
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Panasonic Electric Works |
| Series | HC |
| Packaging | Box |
| RoHS Status | |
| Mounting Type | Chassis Mount |
| Coil Voltage | 200VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 7 A |
| Switching Voltage | 250VAC - Max |
| Load - Max Switching | 1750VA |
| Coil Current | 6 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In, 8 Pin |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 160 VAC |
| Must Release Voltage | 60 VAC |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Operating Temperature | -50°C ~ 70°C |
| Contact Material | Silver Alloy, Cadmium Free, Gold |
| Approval Agency | CSA, UR, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 33.33 kOhms |
| Base Product Number | HC2-HT |
Parts with Similar Specifications
| Product Attribute |  |
|
|
 |
| Part Number | HC2-HTM-AC115V | HC2-HTM-AC120V-F | HC2-HTM-AC240V-F | HC2-HTM-AC24V |
| Manufacturer | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works |
| RoHS Status | ||||
| Description | RELAY GEN PURPOSE DPDT 7A 115V | RELAY GEN PURPOSE DPDT 7A 120V | RELAY GEN PURPOSE DPDT 7A 240V | RELAY GEN PURPOSE DPDT 7A 24V |
| Series | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works |
| Packaging | Bulk | Box | Bulk | Bulk |
