Product CatalogPart Number
HC4E-HP-AC12V
Manufacturer
Panasonic Electric WorksDescription
RELAY GEN PURPOSE 4PDT 2A 12V
Datasheet
DatasheetPackage
-
In Stock
29,702 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
HC4E-HP-AC12V
HC4E-HP-AC12V
lmages are for reference only.Payment Methods
Delivery Services
General Purpose Relay 4PDT (4 Form C) Through Hole
Quick Inquiry
HC4E-HP-AC12V
Specifications
| Category | Relays - Signal Relays-Up to 2 Amps - |
| Manufacturer | Panasonic Electric Works |
| Series | HCE |
| Packaging | Bulk |
| RoHS Status | |
| Mounting Type | Through Hole |
| Coil Voltage | 12VAC |
| Contact Form | 4PDT (4 Form C) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | 250VAC - Max |
| Load - Max Switching | 500VA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 9.6 VAC |
| Must Release Voltage | 3.6 VAC |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Operating Temperature | -40°C ~ 60°C |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Approval Agency | CSA, UR, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Base Product Number | HC4E-H |
| Coil Current | 100 mA |
| Coil Resistance | 120 Ohms |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |
| Part Number | HC4E-HP-AC200V | HC4E-HP-AC24V | HC4E-HP-DC100V | HC4E-HP-DC12V |
| Manufacturer | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works |
| RoHS Status | ||||
| Description | RELAY GEN PURPOSE 4PDT 2A 200V | RELAY GEN PURPOSE 4PDT 2A 24V | RELAY GEN PURPOSE 4PDT 2A 100V | RELAY GEN PURPOSE 4PDT 2A 12V |
| Series | HC4E | HCE | HC4E | HCE |
| Packaging | Box | Bulk | Box | Bulk |
Customers Also Interested in
Recommended Products
HC4E-H-AC120V
Panasonic Electric Works
HC4E-H-AC12V
Panasonic Electric Works
HC4E-H-AC200V
Panasonic Electric Works
HC4E-H-AC24V
Panasonic Electric Works
HC4E-H-AC6V
Panasonic Electric Works
HC4E-H-DC100V
Panasonic Electric Works
HC4E-H-DC12V
Panasonic Electric Works

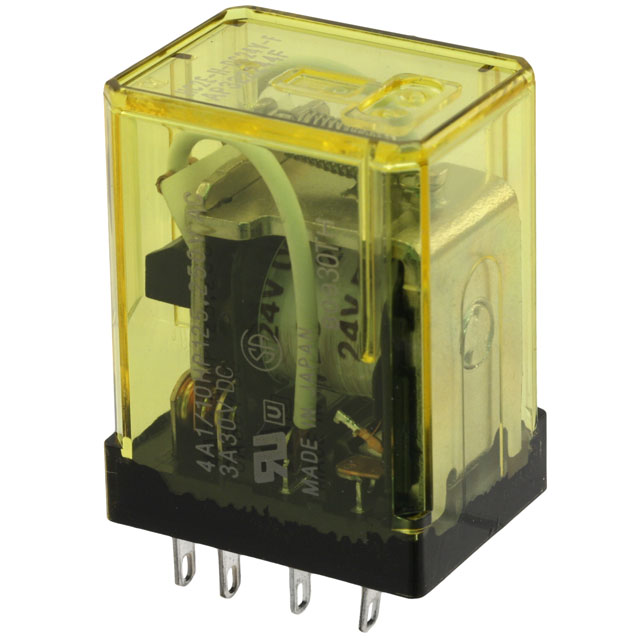

HC4E-H-DC24V
Panasonic Electric Works
HC4E-H-DC6V
Panasonic Electric Works
HC4E-HP-AC200V
Panasonic Electric Works

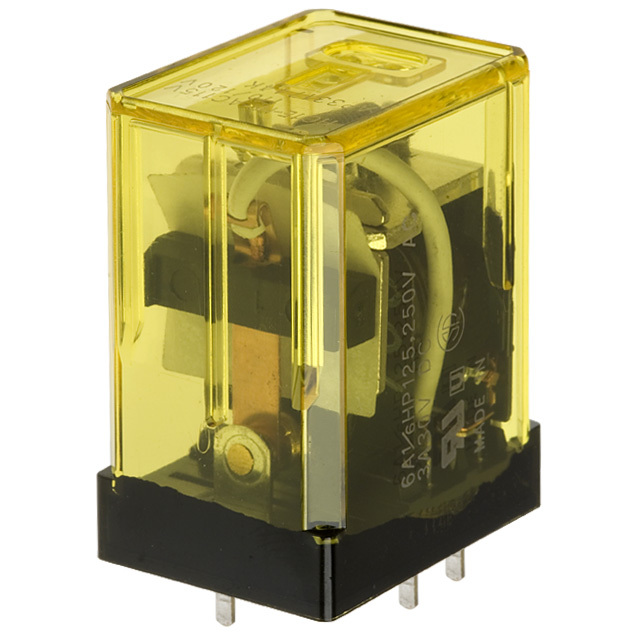

HC4E-HP-AC24V
