HCB1005KF-330T30
lmages are for reference only.HCB1005KF-330T30
30 OHMS @ 100 MHZ 1 POWER LINE F
Datasheet0402 (1005 Metric)
62,625 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
30 Ohms @ 100 MHz 1 Power Line Ferrite Bead 0402 (1005 Metric) 3A 40mOhm
HCB1005KF-330T30
| Category | Filters - Ferrite Beads and Chips - |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. |
| Series | HCB1005KF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 1 |
| Impedance @ Frequency | 30 Ohms @ 100 MHz |
| Current Rating (Max) | 3A |
| DC Resistance (DCR) (Max) | 40mOhm |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 0402 (1005 Metric) |
| Mounting Type | Surface Mount |
| Height (Max) | 0.024" (0.60mm) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Features | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

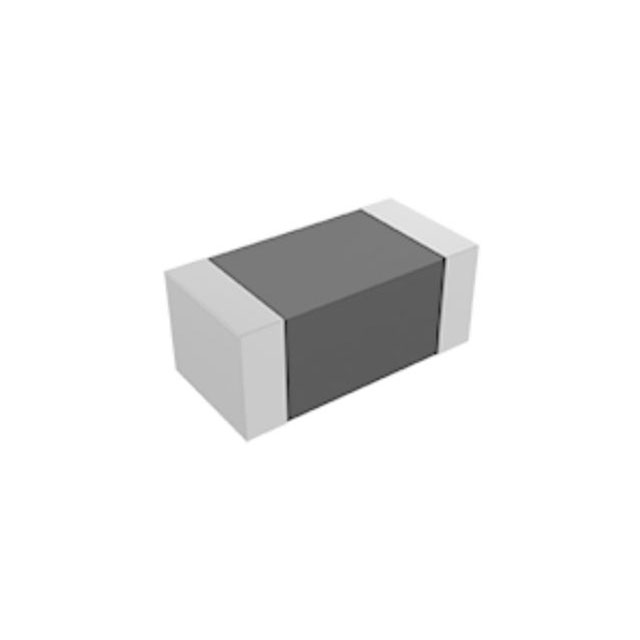

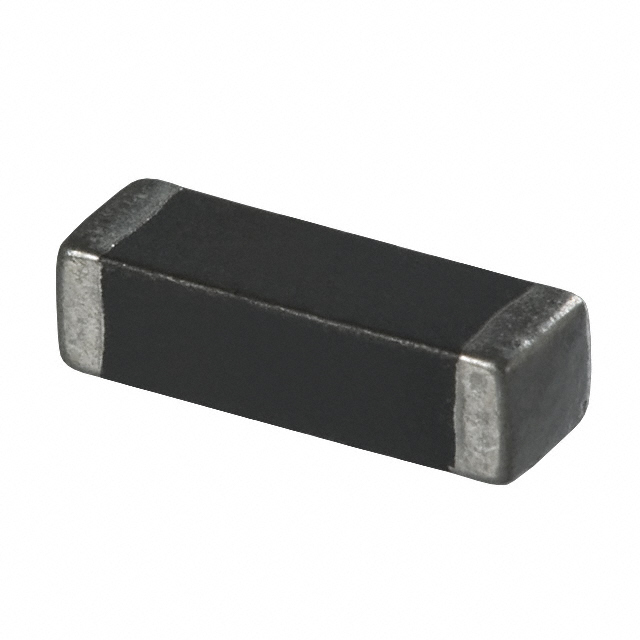

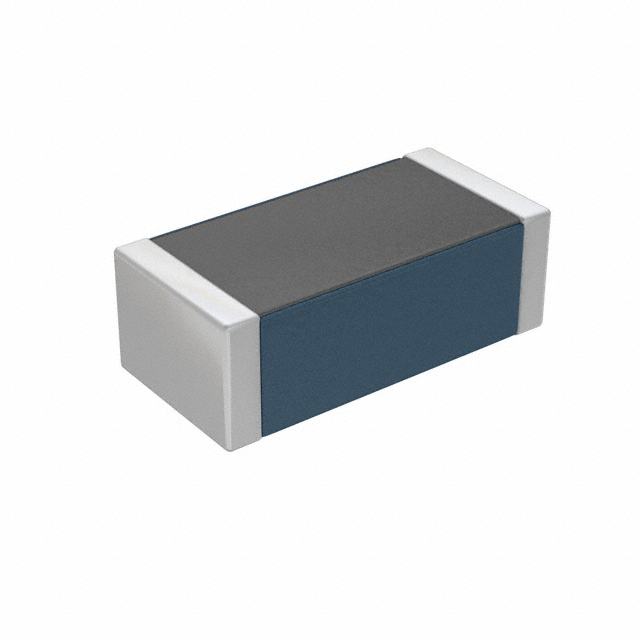

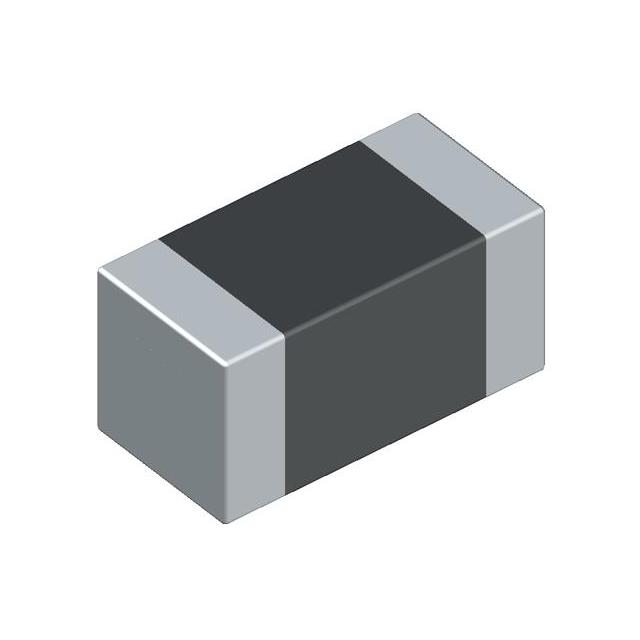

| Part Number | HI3312X101R-10 | HF50ACC321611-T | HFZ 1005PF-121T20 | HZ1005K152TF |
| Manufacturer | Laird-Signal Integrity Products | TDK Corporation | TAI-TECH Advanced Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | FERRITE BEAD 100 OHM 3312 1LN | FERRITE BEAD 31 OHM 1206 1LN | 120 OHMS @ 100 MHZ 1 POWER LINE | FERRITE BEAD 1.5K OHM 0402 1LN |
| Series | 3312 | HF-ACC | HFZ1005PF | HZ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
