HCF1007-2R2-R

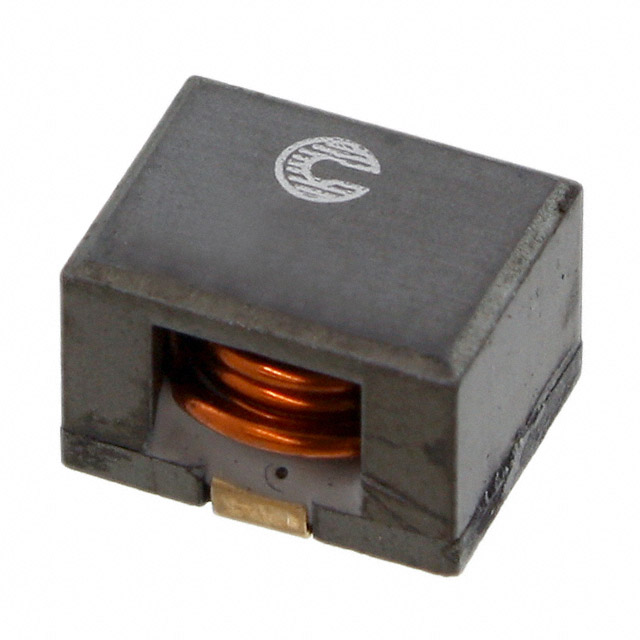

lmages are for reference only.HCF1007-2R2-R
FIXED IND 2.2UH 10.7A 6.35 MOHM
DatasheetNonstandard
68,420 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.2 µH Unshielded Drum Core, Wirewound Inductor 10.7 A 6.35mOhm Nonstandard
HCF1007-2R2-R
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Eaton - Electronics Division |
| Series | HCF1007 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 10.7 A |
| Current - Saturation (Isat) | 18A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 6.35mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.398" L x 0.307" W (10.10mm x 7.80mm) |
| Height - Seated (Max) | 0.262" (6.65mm) |
| Base Product Number | - |
| Product Attribute | |
 |
 |
 |
| Part Number | HCF1007-2R2-R | HCF1007-100-R | HCF1007-1R0-R | HCF1007-3R3-R |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 2.2UH 10.7A 6.35 MOHM | FIXED IND 10UH 9.4A 8.65MOHM SMD | FIXED IND 1UH 16A 2.65 MOHM SMD | FIXED IND 3.3UH 10A 7.5 MOHM SMD |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
