HCM1012GD500A05PDG

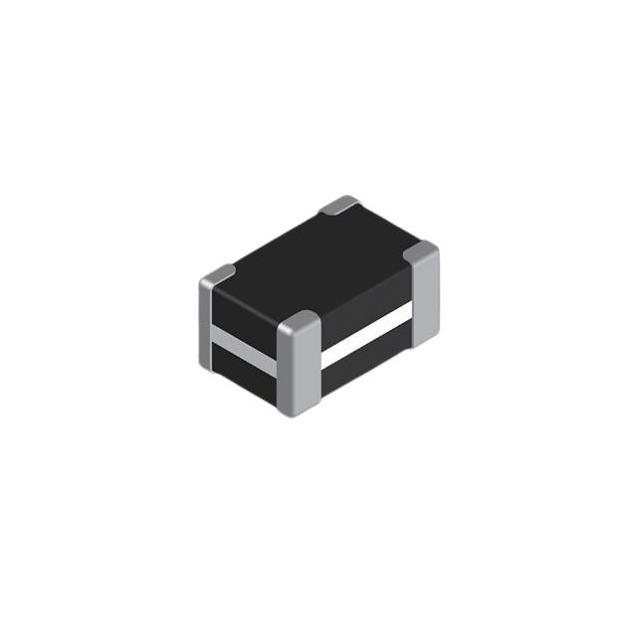

lmages are for reference only.HCM1012GD500A05PDG
CMF 1210 50OHM 100MA 2LN SMD
Datasheet0504 (1210 Metric), 4 PC Pad
16,878 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2 Line Common Mode Choke Surface Mount 50 Ohms @ 100 MHz 100mA DCR 1.5Ohm
HCM1012GD500A05PDG
| Category | Filters - Common Mode Chokes - |
| Manufacturer | INPAQ Technology Co., Ltd |
| Series | HCM1012G |
| Packaging | Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Signal Line |
| Number of Lines | 2 |
| Inductance @ Frequency | - |
| Current Rating (Max) | 100mA |
| DC Resistance (DCR) (Max) | 1.5Ohm |
| Voltage Rating - DC | 10V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.049" L x 0.039" W (1.25mm x 1.00mm) |
| Height (Max) | 0.024" (0.61mm) |
| Package / Case | 0504 (1210 Metric), 4 PC Pad |
| Base Product Number | - |
| Impedance @ Frequency | 50 Ohms @ 100 MHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | HCM1012GD670A05PDG | HCM1012GD900B05PDG | HCM1012GS150A05PDG | PL8224T |
| Manufacturer | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd | iNRCORE, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMF 1210 67OHM 100MA 2LN SMD | CMC 100MA 2LN 90 OHM SMD | CMF 1210 15OHM 100MA 2LN SMD | POWER |
| Series | HCM1012G | HCM1012G | HCM1012G | SLIC |
| Packaging | Cut Tape (CT) | Cut Tape (CT) | Cut Tape (CT) | Tape & Reel (TR) |
