HCM1A1305-120-R

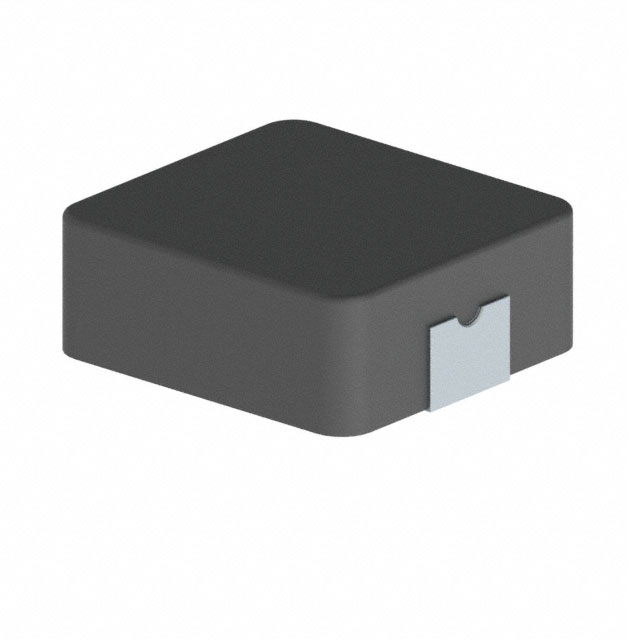

lmages are for reference only.HCM1A1305-120-R
FIXED IND 12UH 5.5A 24 MOHM SMD
DatasheetNonstandard
47,238 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
12 µH Shielded Inductor 5.5 A 24mOhm Max Nonstandard
HCM1A1305-120-R
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Eaton - Electronics Division |
| Series | HCM1A |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Type | - |
| Material - Core | Iron Powder |
| Inductance | 12 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5.5 A |
| Current - Saturation (Isat) | 9A |
| Shielding | Shielded |
| DC Resistance (DCR) | 24mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.524" L x 0.480" W (13.30mm x 12.20mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | HCM1A1305-100-R | HCM1A1305-150-R | HCM1A1305-1R0-R | HCM1A1305-1R5-R |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | FIXED IND 10UH 6.8A 21.9MOHM SMD | FIXED IND 15UH 5.8A 33.4MOHM SMD | FIXED IND 1UH 22A 2.42 MOHM SMD | FIXED IND 1.5UH 18A 3.16MOHM SMD |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
