HCPL-817-W0LE

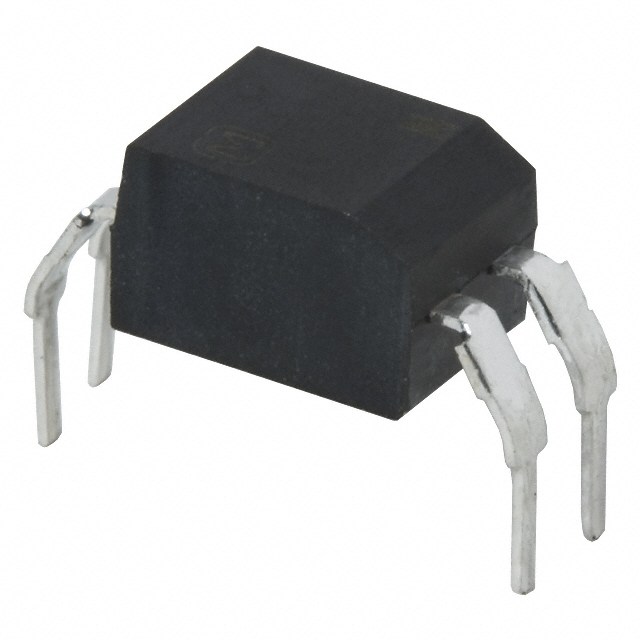

lmages are for reference only.HCPL-817-W0LE
OPTOISOLATOR 5KV TRANSISTOR 4DIP
Datasheet4-DIP (0.400", 10.16mm)
77,988 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP
HCPL-817-W0LE
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Broadcom Limited |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 50% @ 5mA |
| Current Transfer Ratio (Max) | 100% @ 5mA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 70V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 200mV |
| Operating Temperature | -30°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 4-DIP (0.400", 10.16mm) |
| Supplier Device Package | 4-DIP |
| Base Product Number | HCPL-817 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | HCPL-817-W00E | HCPL-817-W0AE | HCPL-817-W0BE | HCPL-817-W0CE |
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OPTOISOLATOR 5KV TRANSISTOR 4DIP | OPTOISOLATOR 5KV TRANSISTOR 4DIP | OPTOISOLATOR 5KV TRANSISTOR 4DIP | OPTOISOLATOR 5KV TRANSISTOR 4DIP |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
