HCTC-2.5-12.5
Manufacturer
Signal TransformerDescription
CMC 2.5MH 12.5A 2LN TH
Datasheet
DatasheetPackage
Vertical, 4 PC Pin
In Stock
23,673 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

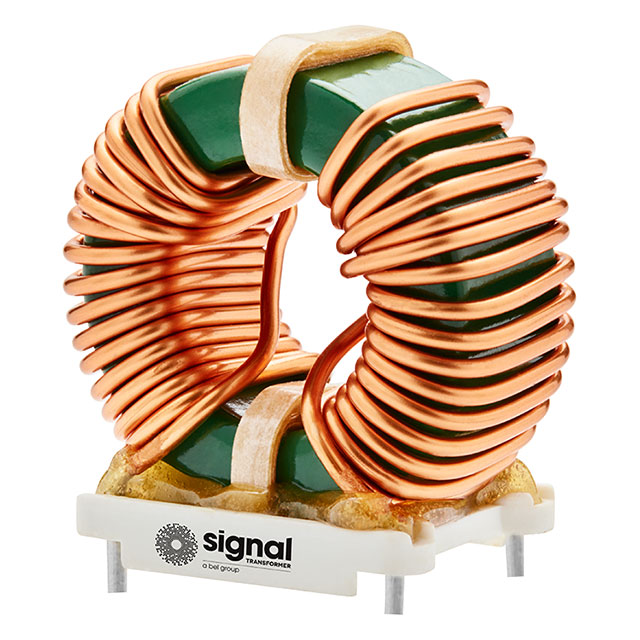

HCTC-2.5-12.5
HCTC-2.5-12.5
lmages are for reference only.Payment Methods
Delivery Services

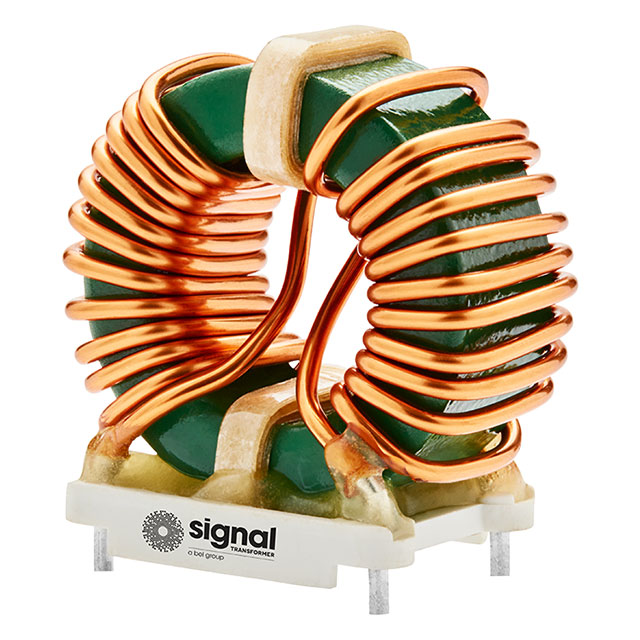

2.5 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 12.5A DCR 11mOhm
Quick Inquiry
HCTC-2.5-12.5
Specifications
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Signal Transformer |
| Series | HCTC |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 2.5 mH @ 1 kHz |
| Current Rating (Max) | 12.5A |
| DC Resistance (DCR) (Max) | 11mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.450" L x 0.600" W (36.83mm x 15.24mm) |
| Height (Max) | 1.500" (38.10mm) |
| Package / Case | Vertical, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
