HCTI-470-3.8

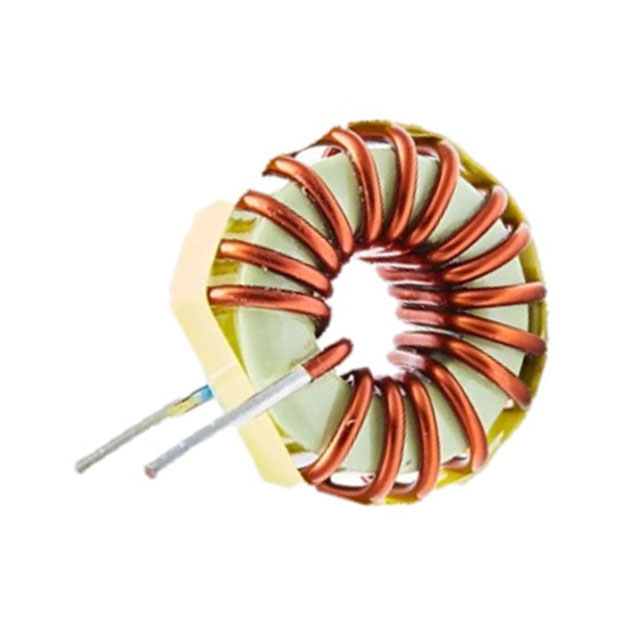

lmages are for reference only.HCTI-470-3.8
FIXED IND 470UH 3.8A 130 MOHM TH
DatasheetRadial, Vertical (Open)
46,681 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
470 µH Shielded Toroidal Inductor 3.8 A 130mOhm Max Radial, Vertical (Open)
HCTI-470-3.8
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Signal Transformer |
| Series | HCTI |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Toroidal |
| Material - Core | - |
| Inductance | 470 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 3.8 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 130mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical (Open) |
| Supplier Device Package | - |
| Size / Dimension | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) |
| Height - Seated (Max) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

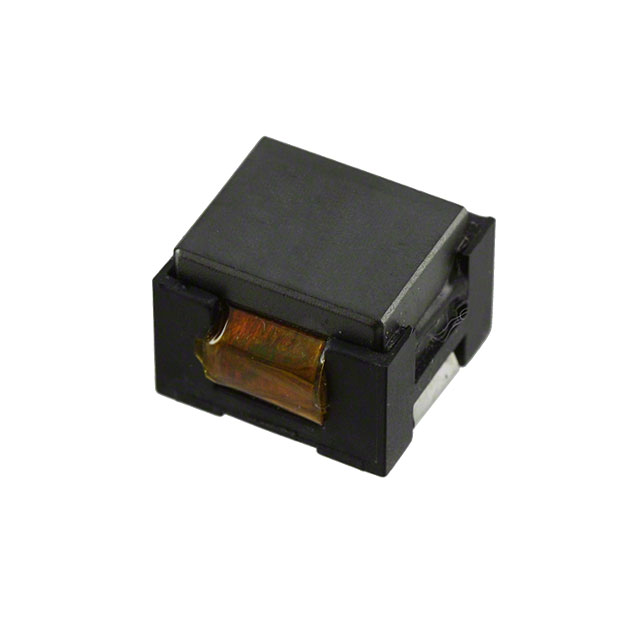

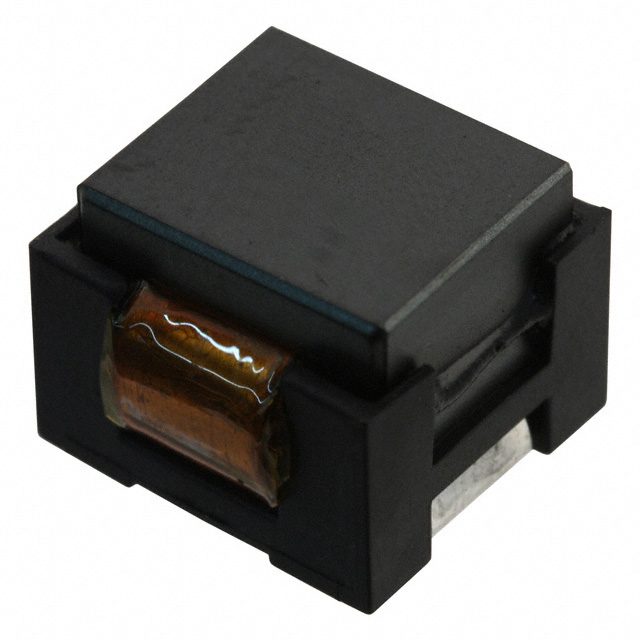

| Part Number | HCTI-47-10.7 | HC1-100-R | HC1-1R0-R | HC1-1R7-R |
| Manufacturer | Signal Transformer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 47UH 10.7A 16 MOHM TH | FIXED IND 10UH 12.79A 5.7MOHM SM | FIXED IND 1UH 28.01A 1.23MOHM SM | FIXED IND 1.7UH 22.3A 2 MOHM SMD |
| Series | Signal Transformer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tray | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
