Product CatalogPart Number
HDLU-2416
Manufacturer
Broadcom LimitedDescription
LED DISPLAY 5X7 4CHAR 5MM RED
Datasheet
DatasheetPackage
-
In Stock
97,114 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
HDLU-2416
HDLU-2416
lmages are for reference only.Payment Methods
Delivery Services
Dot Matrix Display Module 5 x 7 Red 7-Bit ASCII 0.99" L x 0.79" W x 0.26" H (25.15mm x 20.07mm x 6.60mm)
Quick Inquiry
HDLU-2416
Specifications
| Category | Optoelectronics - LED Dot Matrix and Cluster - |
| Manufacturer | Broadcom Limited |
| Series | HDLx-2416 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Millicandela Rating | 1.20mcd ~ 13.30mcd |
| Internal Connection | - |
| Size / Dimension | 0.99" L x 0.79" W x 0.26" H (25.15mm x 20.07mm x 6.60mm) |
| Color | Red |
| Configuration | 5 x 7 |
| Voltage - Forward (Vf) (Typ) | - |
| Interface | 7-Bit ASCII |
| Base Product Number | HDLU-2416 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

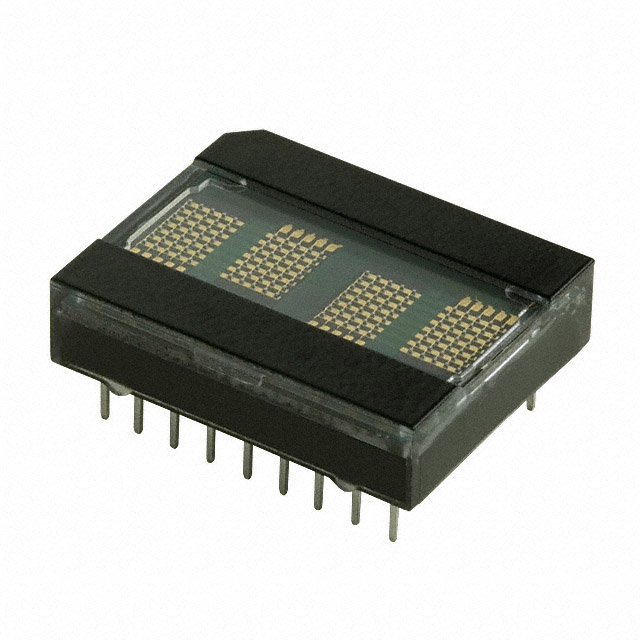

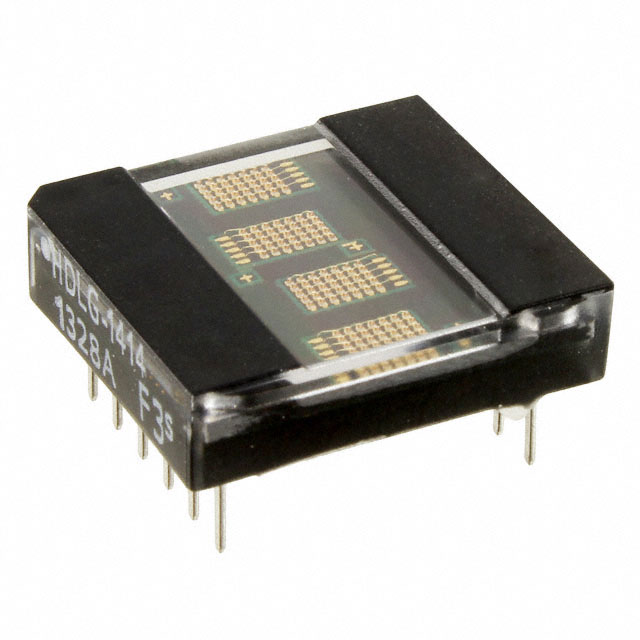

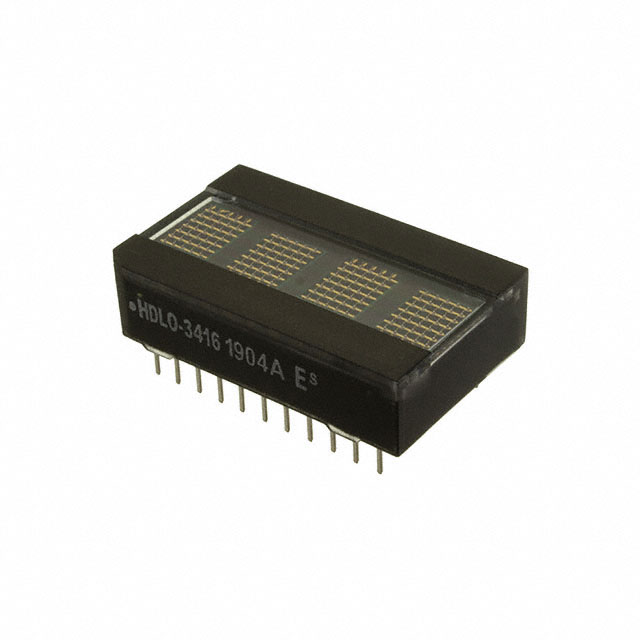

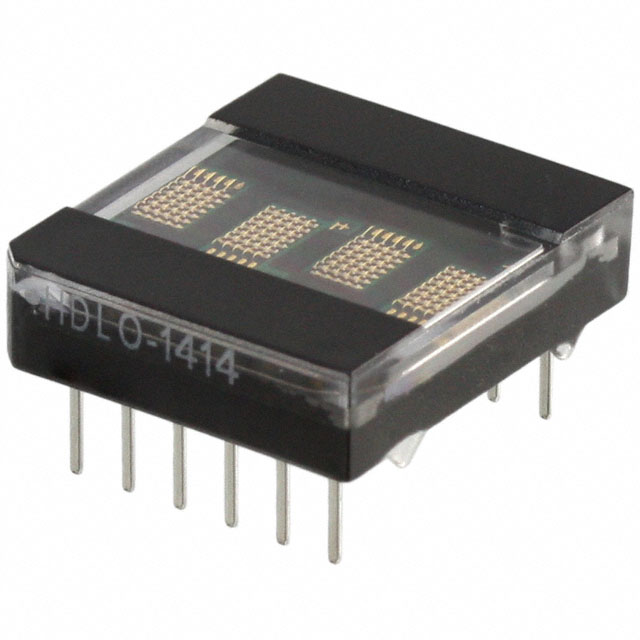

| Part Number | HDLA-1414 | HDLA-2416 | HDLA-3416 | HDLG-1414 |
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DISPLAY 5X7 0.15" 4CHAR ORANGE | DISPLAY 5X7 0.2" 4CHAR ORANGE | DISPLAY 5X7 0.27" 4CHAR ORANGE | DISPLAY 5X7 0.15" 4CHAR GREEN |
| Series | HDLx-1414 | HDLx-2416 | HDLx-3416 | HDLx-1414 |
| Packaging | Tube | Tube | Tube | Tube |
