HDSP-5523
lmages are for reference only.HDSP-5523

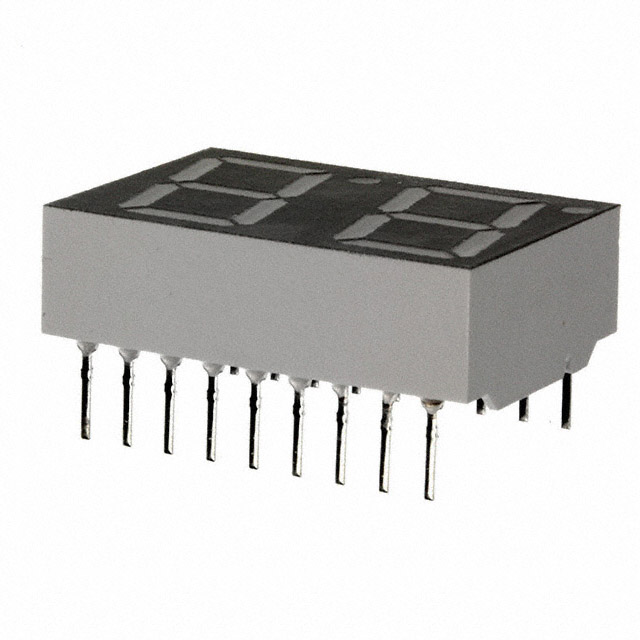

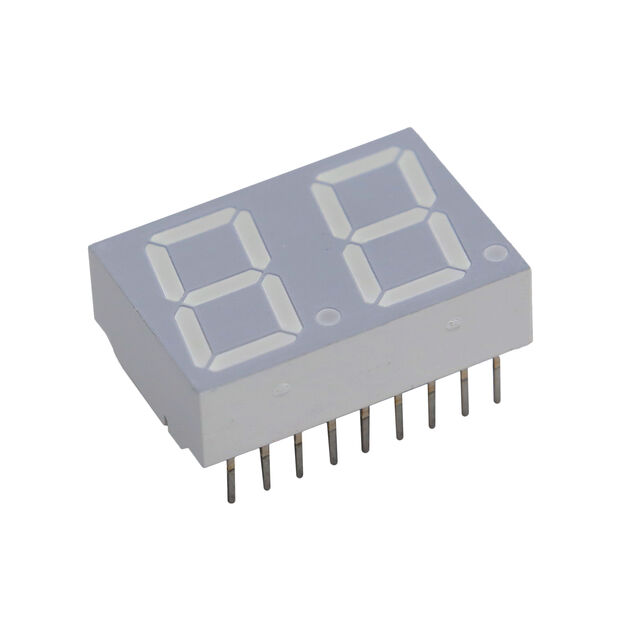

DISPLAY 7SEG 0.56" DBL RED 18DIP
Datasheet18-DIP (0.600", 15.24mm)
100,681 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Red 7-Segment 2 Character Common Cathode 2.1V 20mA 0.670" H x 0.990" W x 0.315" D (17.02mm x 25.15mm x 8.00mm) 18-DIP (0.600", 15.24mm)
HDSP-5523
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Broadcom Limited |
| Series | HDSP-552x |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 2 |
| Size / Dimension | 0.670" H x 0.990" W x 0.315" D (17.02mm x 25.15mm x 8.00mm) |
| Digit/Alpha Size | 0.56" (14.22mm) |
| Display Type | 7-Segment |
| Common Pin | Common Cathode |
| Color | Red |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Millicandela Rating | 2.8mcd |
| Wavelength - Peak | 635nm |
| Power Dissipation (Max) | 105mW |
| Package / Case | 18-DIP (0.600", 15.24mm) |
| Base Product Number | HDSP-552 |
| Display Format | - |
| Product Attribute |  |
 |
|
 |
| Part Number | HDSP-5521 | HDSP-5521-GG000 | HDSP-5521-GH000 | HDSP-5521-JJ000 |
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DISPLAY 7SEG 0.56" DBL RED 18DIP | DISPLAY 7SEG 0.56" DBL RED 18DIP | DISPLAY 7SEG 0.56" DBL RED 18DIP | S4,0.56D,ALLNGAPRED,CA |
| Series | HDSP-552x | HDSP-552x | HDSP-552x | HDSP-552x |
| Packaging | Tube | Bulk | Bulk | Tube |
