HDSP-U403
lmages are for reference only.HDSP-U403
DISPLAY 7SEG 0.31" SGL ORG 10DIP
Datasheet10-DIP (0.209", 5.30mm)
100,496 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Orange 7-Segment 1 Character Common Cathode 2V 20mA 0.433" H x 0.280" W x 0.197" D (11.00mm x 7.10mm x 5.00mm) 10-DIP (0.209", 5.30mm)
HDSP-U403
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Broadcom Limited |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 1 |
| Size / Dimension | 0.433" H x 0.280" W x 0.197" D (11.00mm x 7.10mm x 5.00mm) |
| Digit/Alpha Size | 0.31" (8.00mm) |
| Display Type | 7-Segment |
| Common Pin | Common Cathode |
| Color | Orange |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Millicandela Rating | 5.39mcd |
| Wavelength - Peak | 600nm |
| Power Dissipation (Max) | 105mW |
| Package / Case | 10-DIP (0.209", 5.30mm) |
| Base Product Number | HDSP-U4 |
| Display Format | - |
| Product Attribute |  |
 |
 |
 |

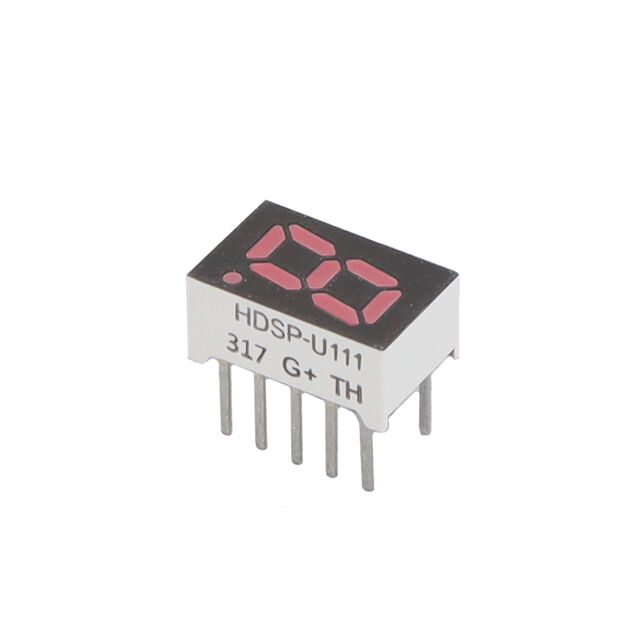

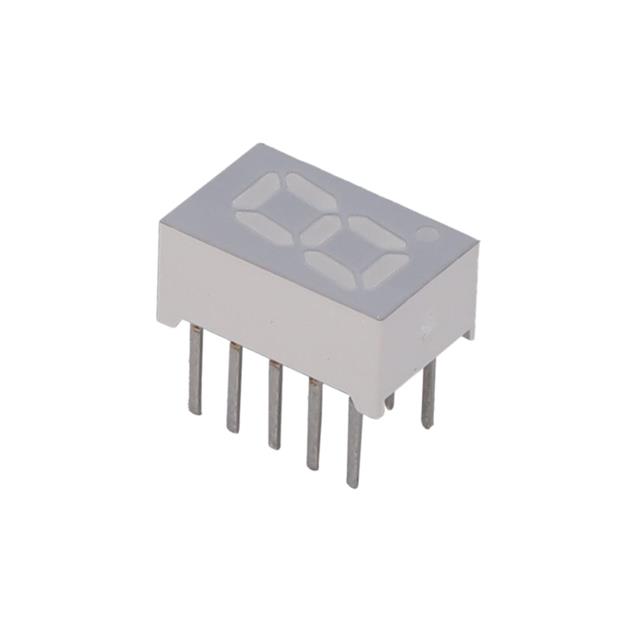

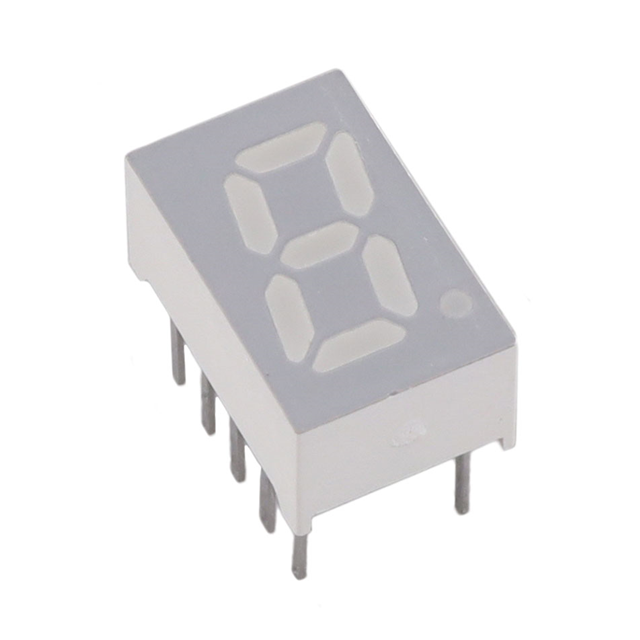

| Part Number | HDSP-U401 | HDSP-U101 | HDSP-U103 | HDSP-U111 |
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DISPLAY 7SEG 0.31" SGL ORG 10DIP | DISPLAY 7SEG 0.31" SGL RED 10DIP | DISPLAY 7SEG 0.31" SGL RED 10DIP | DISPLAY 7SEG 0.31" SGL RED 10DIP |
| Series | - | - | - | - |
| Packaging | Bulk | Tube | Bulk | Bulk |
