HE24-1A69-03
Manufacturer
Standex-Meder ElectronicsDescription
HIGH VOLTAGE REED RELAY. FORM 1A
Datasheet
DatasheetPackage
-
In Stock
65,376 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
HE24-1A69-03
HE24-1A69-03
lmages are for reference only.Payment Methods
Delivery Services
Quick Inquiry
HE24-1A69-03
Specifications
| Category | Relays - Reed Relays - |
| Manufacturer | Standex-Meder Electronics |
| Series | HE |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 3 A |
| Switching Voltage | 10000VAC, 10000VDC - Max |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | - |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2 VDC |
| Operating Temperature | -20°C ~ 70°C |
| Contact Material | - |
| Coil Resistance | 465 Ohms |
| Coil Current | 51.6 mA |
| Operate Time | 3 ms |
| Release Time | 1.5 ms |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

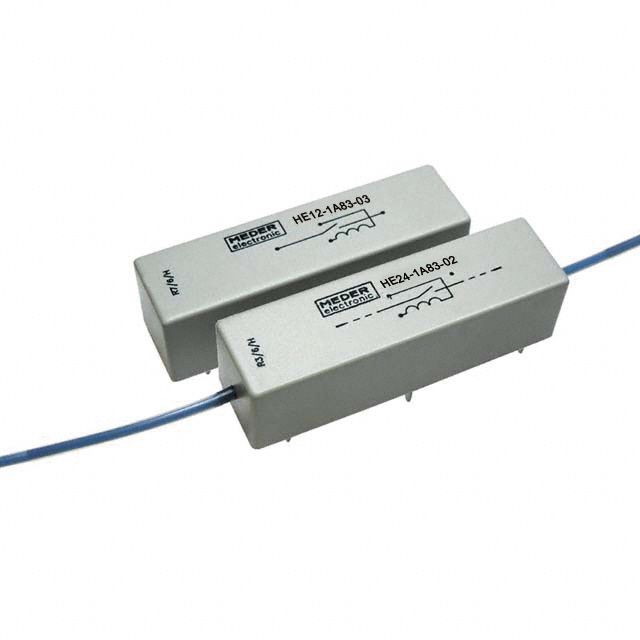

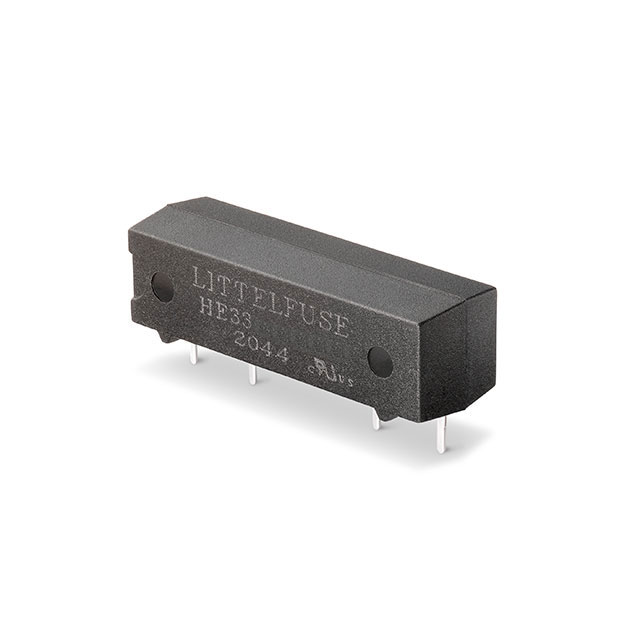

| Part Number | HE24-1A83-02 | HE24-1C22 | HE3671A1210 | HE3321C0400 |
