Product CatalogPart Number
HEDB-9140-A12
Manufacturer
Broadcom LimitedDescription
ROTARY ENCODER OPTICAL 500PPR
Datasheet
DatasheetPackage
-
In Stock
79,428 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
HEDB-9140-A12
HEDB-9140-A12
lmages are for reference only.Payment Methods
Delivery Services

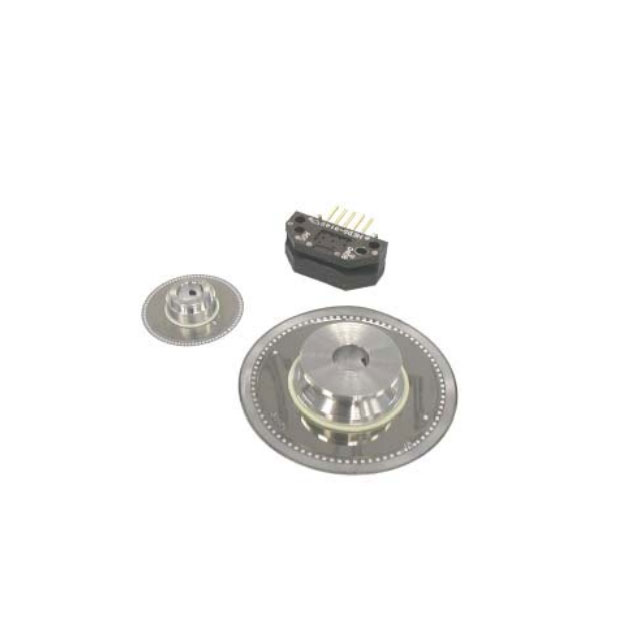

Rotary Encoder Optical 500 Quadrature with Index (Incremental)
Quick Inquiry
HEDB-9140-A12
Specifications
| Category | Sensors, Transducers - Encoders - |
| Manufacturer | Broadcom Limited |
| Series | HEDB-9140 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Encoder Type | Optical |
| Output Type | Quadrature with Index (Incremental) |
| Pulses per Revolution | 500 |
| Voltage - Supply | 5V |
| Actuator Type | 6mm Open Center |
| Detent | No |
| Built in Switch | No |
| Mounting Type | Chassis Mount, Motors |
| Orientation | - |
| Termination Style | Terminal Pins |
| Rotational Life (Cycles Min) | - |
| Base Product Number | HEDB-9140 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
|
|
| Part Number | HEDB-9140-I13 | HEDB-9100-A14 | HEDB-9100-C12 | HEDB-9100-I12 |
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | ROTARY ENCODER OPTICAL 512PPR | ROTARY ENCODER OPTICAL 500PPR | ROTARY ENCODER OPTICAL 100PPR | ROTARY ENCODER OPTICAL 512PPR |
| Series | HEDB-9140 | HEDB-9100 | HEDB-9100 | HEDB-9100 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
