HEF4093BT/AUJ

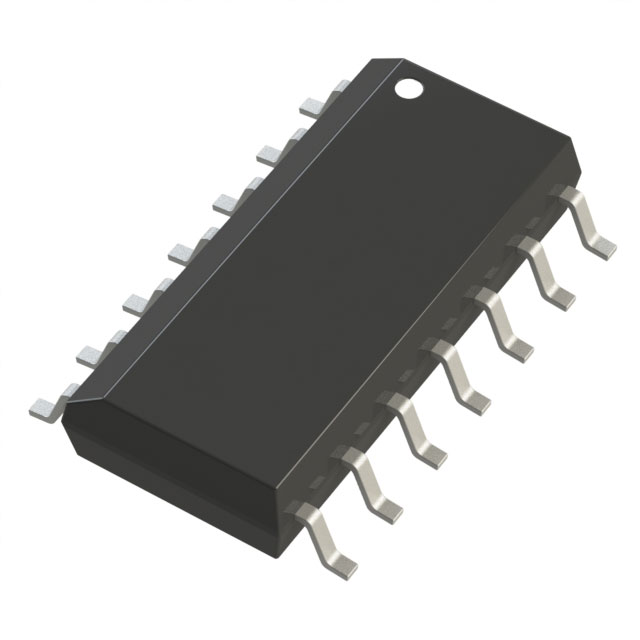

lmages are for reference only.HEF4093BT/AUJ
IC GATE NAND SCHMIT 4CH 2IN 14SO
Datasheet14-SOIC (0.154", 3.90mm Width)
18,769 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
NAND Gate IC 4 Channel Schmitt Trigger 14-SO
HEF4093BT/AUJ
| Category | Integrated Circuits (ICs) - Logic - Gates and Inverters |
| Manufacturer | NXP USA Inc. |
| Series | 4000B |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | HEF4093 |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger |
| Voltage - Supply | 3V ~ 15V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 3.4mA, 3.4mA |
| Input Logic Level - Low | 1.5V ~ 4V |
| Input Logic Level - High | 3.5V ~ 11V |
| Max Propagation Delay @ V, Max CL | 60ns @ 15V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SO |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | HEF4093BT/S400,118 | HEF4093BP,652 | HEF4093BT,652 | HEF4093BT,653 |
| Manufacturer | Nexperia USA Inc. | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC GATE NAND 4CH 2-INP 14SO | IC GATE NAND 4CH 2-INP 14DIP | IC GATE NAND SCHMIT 4CH 2IN 14SO | IC GATE NAND SCHMIT 4CH 2IN 14SO |
| Series | 4000B | 4000B | 4000B | 4000B |
| Packaging | Bulk | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
