HF01B01DP-LF

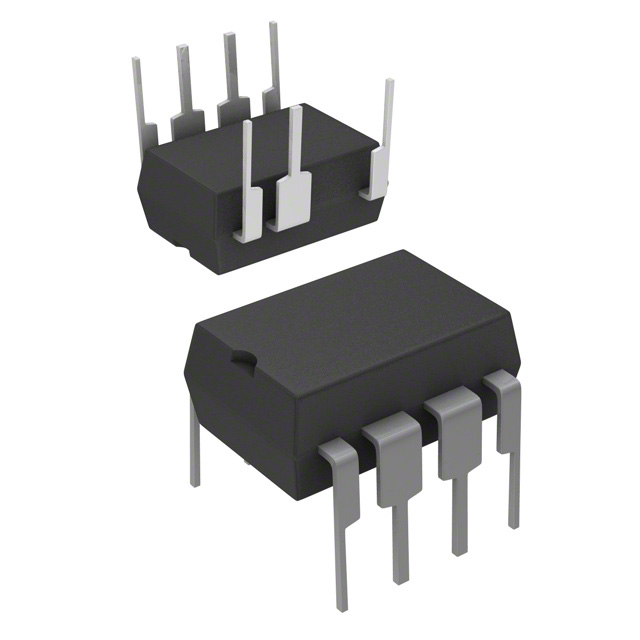

lmages are for reference only.HF01B01DP-LF
IC OFFLINE SWITCH FLYBACK 8DIP
Datasheet8-DIP (0.300", 7.62mm), 7 Leads
61,927 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Converter Offline Flyback Topology Up to 150kHz 8-PDIP-7B
HF01B01DP-LF
| Category | Integrated Circuits (ICs) - Power Management PMIC - AC DC Converters-Offline Switches |
| Manufacturer | Monolithic Power Systems Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 20V |
| Duty Cycle | - |
| Frequency - Switching | Up to 150kHz |
| Power (Watts) | 45 W |
| Fault Protection | Over Load, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 8-PDIP-7B |
| Mounting Type | Through Hole |
| Base Product Number | HF01 |
| Voltage - Start Up | 11.8 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | HF01B00DP-LF | HF01B02DP-LF | HF01B03DP-LF | HF01B04DP-LF |
| Manufacturer | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC OFFLINE SWITCH FLYBACK 8DIP | IC OFFLINE SWITCH FLYBACK 8DIP | IC OFFLINE SWITCH FLYBACK 8DIP | IC OFFLINE SWITCH FLYBACK 8DIP |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
