HFW23R-2STE1LF
Manufacturer
Amphenol ICC (FCI)Description
CONN FFC FPC TOP 23POS 1MM R/A
Datasheet
DatasheetPackage
-
In Stock
96,795 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
HFW23R-2STE1LF
HFW23R-2STE1LF
lmages are for reference only.Payment Methods
Delivery Services

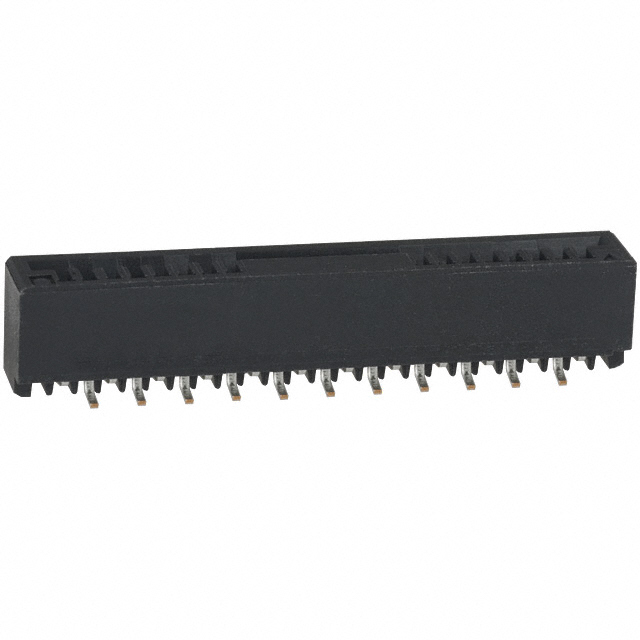

23 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle
Quick Inquiry
HFW23R-2STE1LF
Specifications
| Category | Connectors, Interconnects - FFC-FPC Flat Flexible Connectors - FFC-FPC Flat Flexible Connector Assemblies |
| Manufacturer | Amphenol ICC (FCI) |
| Series | HFW-R |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top |
| Number of Positions | 23 |
| Pitch | 0.039" (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.075" (1.90mm) |
| Locking Feature | - |
| Cable End Type | Straight or Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Polyamide (PA6T), Nylon 6T, Glass Filled |
| Actuator Material | - |
| Features | - |
| Voltage Rating | 100V |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 1A |
| Contact Finish Thickness | - |
| Housing Color | Black |
| Actuator Color | - |
| Mating Cycles | 30 |
| Base Product Number | HFW23R |
