HGTD10N40F1S

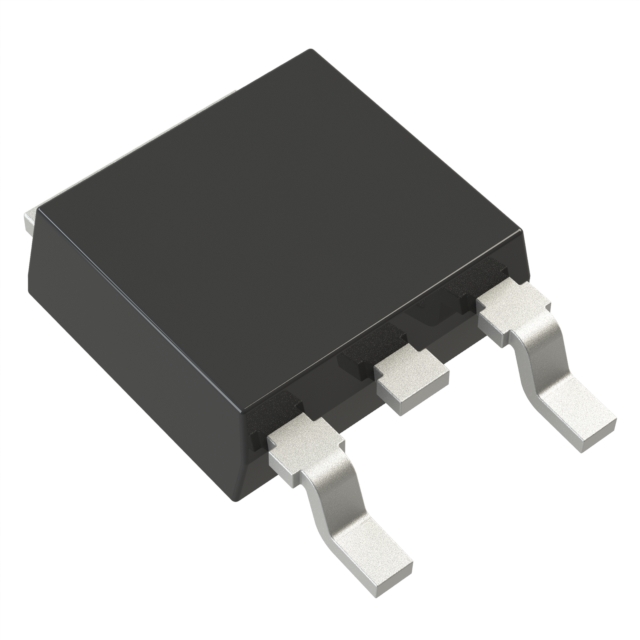

lmages are for reference only.HGTD10N40F1S
10A, 400V N-CHANNEL IGBT
DatasheetTO-252-3, DPAK (2 Leads + Tab), SC-63
80,315 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IGBT 400 V 12 A 75 W Surface Mount TO-252 (DPAK)
HGTD10N40F1S
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | Harris Corporation |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 400 V |
| Current - Collector (Ic) (Max) | 12 A |
| Current - Collector Pulsed (Icm) | - |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 10V, 5A |
| Power - Max | 75 W |
| Switching Energy | - |
| Input Type | Standard |
| Gate Charge | 13.4 nC |
| Td (on/off) @ 25°C | - |
| Test Condition | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252 (DPAK) |
| Reverse Recovery Time (trr) | - |
| Base Product Number | - |
| Product Attribute | |
 |
 |
 |
| Part Number | HGTD10N50F1 | HG24N60D1D | HGT1S10N120BNS | HGT1S10N120BNST |
| Manufacturer | Harris Corporation | Harris Corporation | onsemi | onsemi |
| RoHS Status | RoHS non-compliant | Not applicable | ROHS3 Compliant | ROHS3 Compliant |
| Description | IGBT 500V 12A IPAK | HG24N60D1D | IGBT 1200V 35A 298W TO263AB | IGBT NPT 1200V 35A TO263 |
| Series | - | * | - | - |
| Packaging | Bulk | Bulk | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
