HHXA630ARA330MHA0G
lmages are for reference only.Payment Methods
Delivery Services
33 µF 63 V Aluminum - Polymer Capacitors Radial, Can - SMD 40mOhm 4000 Hrs @ 125°C
HHXA630ARA330MHA0G
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Chemi-Con |
| Series | HXA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Hybrid |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 40mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1.1 A @ 100 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.406" (10.30mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Base Product Number | - |
| Features | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |

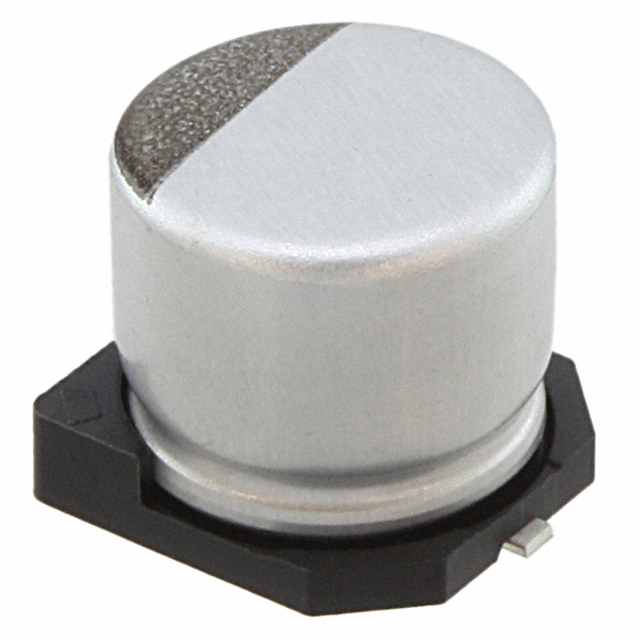

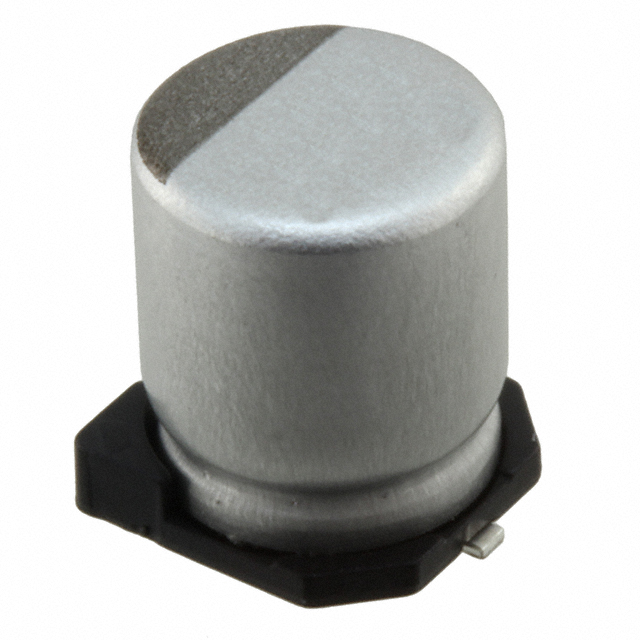

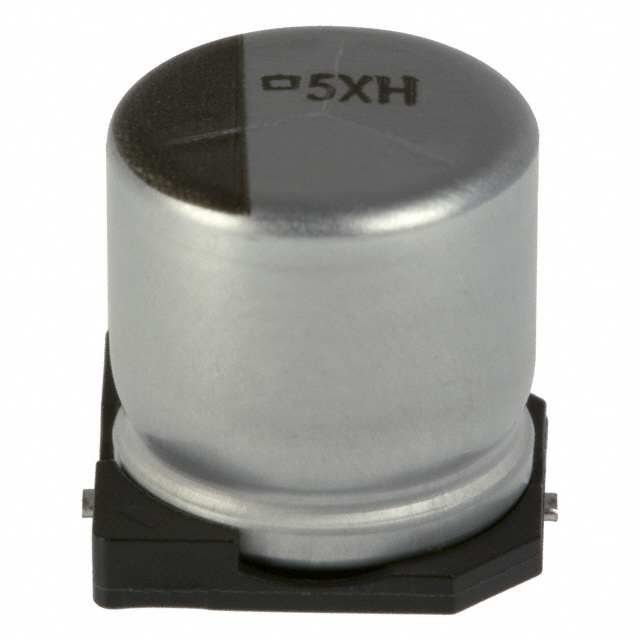

| Part Number | HHXA630ARA100MF61G | HHXA630ARA220MF80G | HHXA630ARA560MJA0G | HHXA160ARA151MF80G |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM HYBRID 10UF 20% 63V SMD | CAP ALUM HYBRID 22UF 20% 63V SMD | CAP ALUM HYBRID 56UF 20% 63V SMD | CAP ALUMHYB 150UF 20% 16V SMD |
| Series | HXA | HXA | HXA | HXA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
