HI0603N300R-10
lmages are for reference only.HI0603N300R-10
FERRITE BEAD 30 OHM 0603 1LN
Datasheet0603 (1608 Metric)
30,214 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
30 Ohms @ 100 MHz 1 Power, Signal Line Ferrite Bead 0603 (1608 Metric) 3A 40mOhm
HI0603N300R-10
| Category | Filters - Ferrite Beads and Chips - |
| Manufacturer | Laird-Signal Integrity Products |
| Series | 0603 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power, Signal Line |
| Number of Lines | 1 |
| Impedance @ Frequency | 30 Ohms @ 100 MHz |
| Current Rating (Max) | 3A |
| DC Resistance (DCR) (Max) | 40mOhm |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 0603 (1608 Metric) |
| Mounting Type | Surface Mount |
| Height (Max) | 0.031" (0.80mm) |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.80mm) |
| Features | - |
| Base Product Number | - |
| Product Attribute | |
|
 |
 |

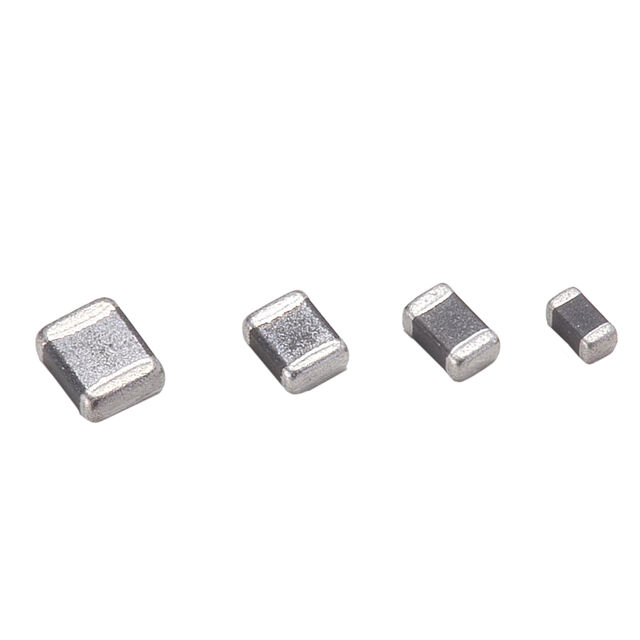

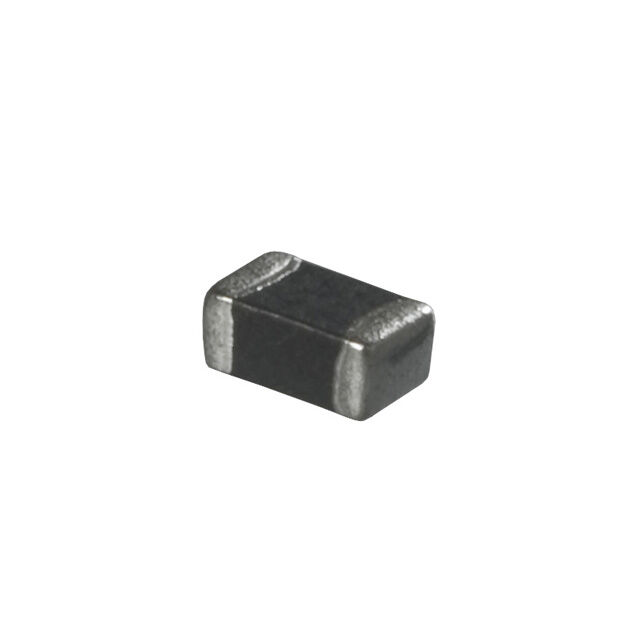

| Part Number | HI0603N330R-10 | HI0603N800R-10 | HI0603O700R-10 | HI0603P600R-00 |
| Manufacturer | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | FERRITE BEAD 33 OHM 0603 1LN | FERRITE BEAD 80 OHM 0603 1LN | FERRITE BEAD 70 OHM 0603 1LN | FERRITE BEAD 60 OHM 0603 1LN |
| Series | 0603 | HI | 0603 | HI |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
