HI2220P551R-00

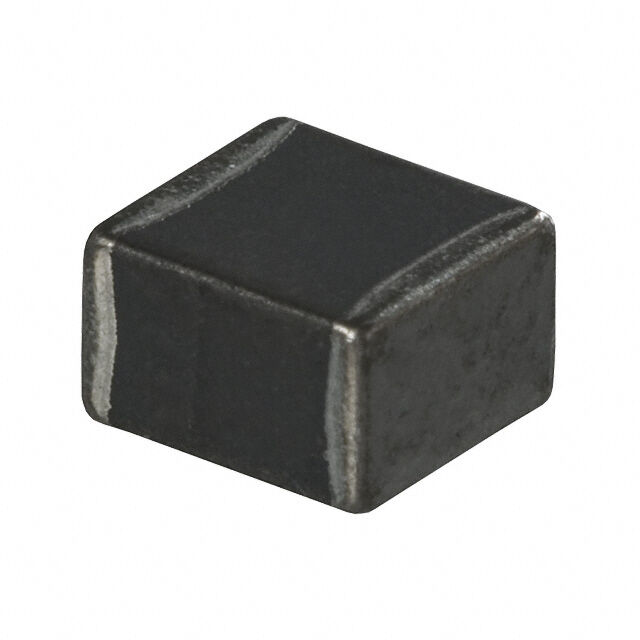

lmages are for reference only.HI2220P551R-00
FERRITE BEAD 550 OHM 2220 1LN
Datasheet2220 (5650 Metric)
55,008 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
550 Ohms @ 100 MHz 1 Power, Signal Line Ferrite Bead 2220 (5650 Metric) 4A 35mOhm
HI2220P551R-00
| Category | Filters - Ferrite Beads and Chips - |
| Manufacturer | Laird-Signal Integrity Products |
| Series | HI |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| Filter Type | Power, Signal Line |
| Number of Lines | 1 |
| Impedance @ Frequency | 550 Ohms @ 100 MHz |
| Current Rating (Max) | 4A |
| DC Resistance (DCR) (Max) | 35mOhm |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 2220 (5650 Metric) |
| Mounting Type | Surface Mount |
| Height (Max) | 0.078" (1.97mm) |
| Size / Dimension | 0.220" L x 0.200" W (5.59mm x 5.08mm) |
| Features | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | HI2220P551R-10 | HI2220P171R-00 | HI2220P171R-10 | HI2220P251R-00 |
| Manufacturer | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | FERRITE BEAD 550 OHM 2220 1LN | FERRITE BEAD 170 OHM 2220 1LN | FERRITE BEAD 170 OHM 2220 1LN | FERRITE BEAD 250 OHM 2220 1LN |
| Series | 2220 | HI | 2220 | HI |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
