Product CatalogPart Number
HIF3B-40D-2.54R(63)
Manufacturer
Hirose Electric Co LtdDescription
CONN SOCKET 40POS IDC 28AWG GOLD
Datasheet
DatasheetPackage
-
In Stock
67,007 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
HIF3B-40D-2.54R(63)
HIF3B-40D-2.54R(63)
lmages are for reference only.Payment Methods
Delivery Services
40 Position Rectangular Socket Connector IDC Gold 28 AWG
Quick Inquiry
HIF3B-40D-2.54R(63)
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Free Hanging-Panel Mount |
| Manufacturer | Hirose Electric Co Ltd |
| Series | HIF3B |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Connector Type | Socket |
| Contact Type | Female Socket |
| Number of Positions | 40 |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing | 0.100" (2.54mm) |
| Mounting Type | Free Hanging (In-Line) |
| Fastening Type | - |
| Cable Termination | IDC |
| Wire Type | Ribbon Cable |
| Wire Gauge | 28 AWG |
| Features | Feed Through, Polarizing Key, Strain Relief |
| Contact Finish | Gold |
| Contact Finish Thickness | 7.87µin (0.200µm) |
| Color | Black |
| Base Product Number | HIF3B |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

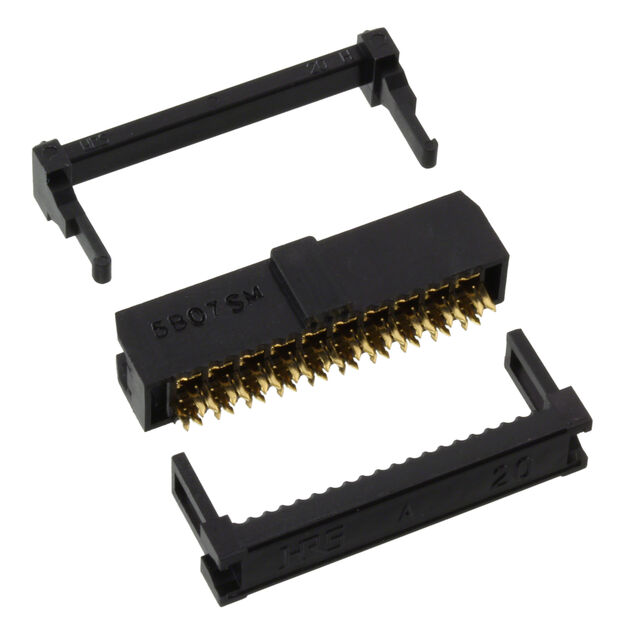

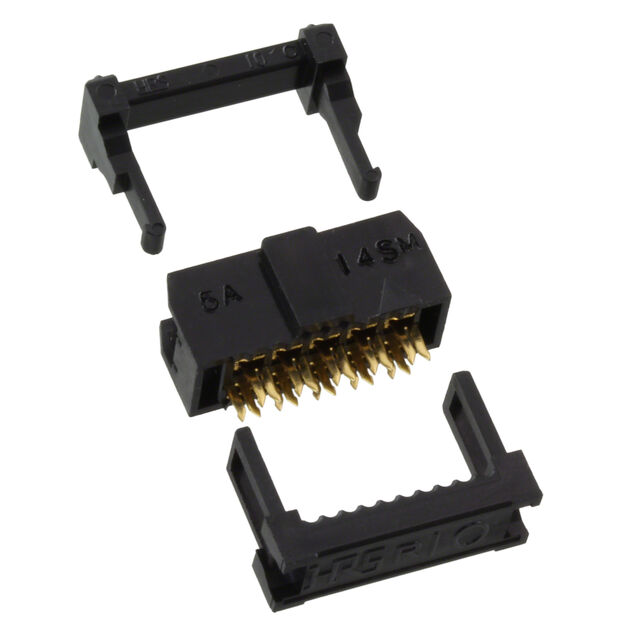

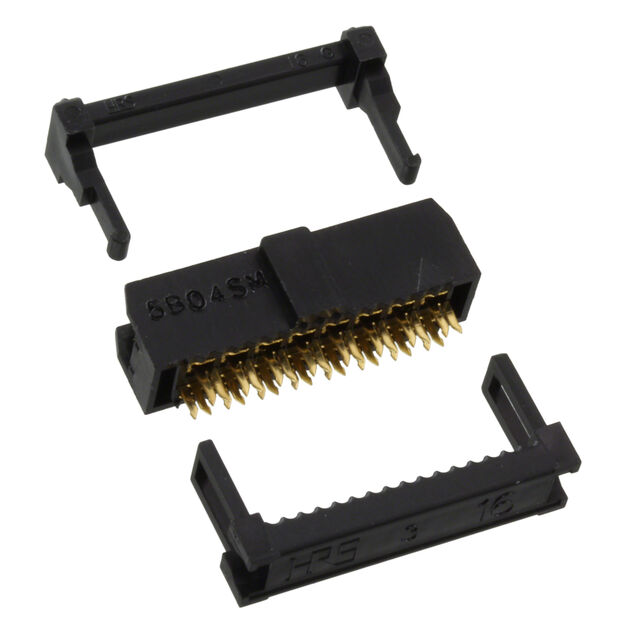

| Part Number | HIF3B-40D-2.54R | HIF3A-10D-2.54R | HIF3A-16D-2.54R | HIF3A-20D-2.54R |
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | CONN SOCKET 40POS IDC 28AWG GOLD | CONN SOCKET 10POS IDC 28AWG GOLD | CONN SOCKET 16POS IDC 28AWG GOLD | CONN SOCKET 20POS IDC 28AWG GOLD |
| Series | HIF3B | HIF3 | HIF3 | HIF3 |
| Packaging | Tray | Tray | Tray | Tray |
