Product CatalogPart Number
HIF3FB-10DA-2.54DSA(69)
Manufacturer
Hirose Electric Co LtdDescription
CONN RCPT 10POS 0.1 GOLD PCB
Datasheet
DatasheetPackage
-
In Stock
73,036 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
HIF3FB-10DA-2.54DSA(69)
HIF3FB-10DA-2.54DSA(69)
lmages are for reference only.Payment Methods
Delivery Services
10 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Quick Inquiry
HIF3FB-10DA-2.54DSA(69)
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Receptacles-Female Sockets |
| Manufacturer | Hirose Electric Co Ltd |
| Series | HIF3FB |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Insulation Color | Black |
| Insulation Height | 0.374" (9.50mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Operating Temperature | -55°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | - |
| Mated Stacking Heights | 12.2mm |
| Ingress Protection | - |
| Features | Polarizing Key |
| Current Rating (Amps) | 1A |
| Voltage Rating | 200VAC |
| Applications | General Purpose |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Contact Shape | Square |
| Contact Material | Copper Alloy |
| Contact Finish Thickness - Post | - |
| Base Product Number | HIF3FB |
Parts with Similar Specifications
| Product Attribute | .jpg "HIF3FB-10DA-2.54DSA(71)") |

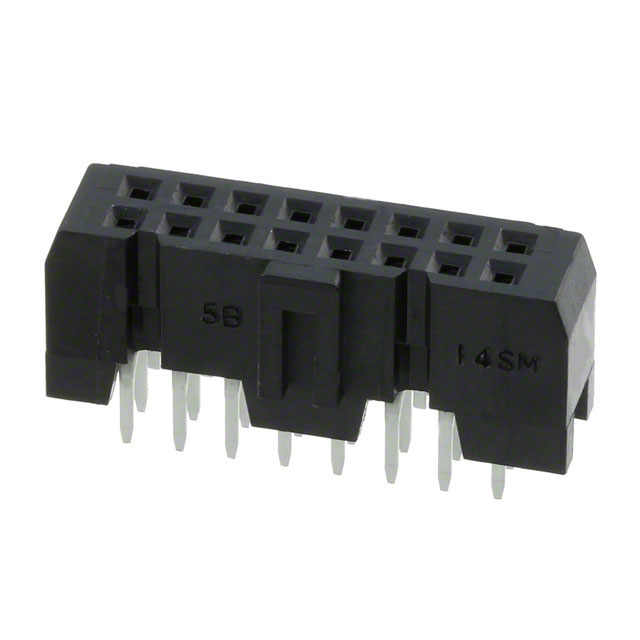

.jpg "HIF3FB-16DA-2.54DSA(71)") |

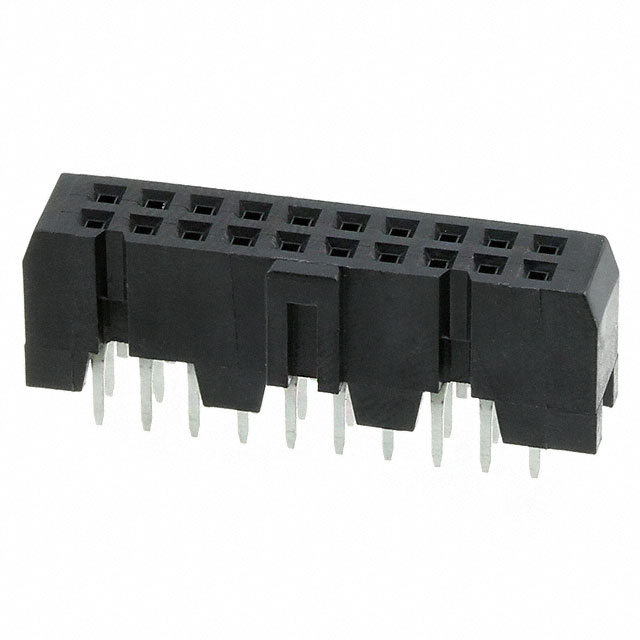

.jpg "HIF3FB-20DA-2.54DSA(71)") |

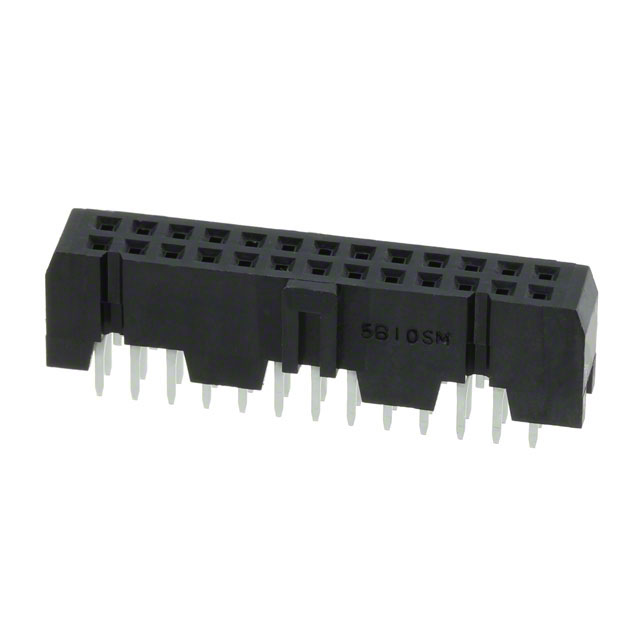

.jpg "HIF3FB-26DA-2.54DSA(71)") |
| Part Number | HIF3FB-10DA-2.54DSA(71) | HIF3FB-16DA-2.54DSA(71) | HIF3FB-20DA-2.54DSA(71) | HIF3FB-26DA-2.54DSA(71) |
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN RCPT 10POS 0.1 GOLD PCB | CONN RCPT 16POS 0.1 GOLD PCB | CONN RCPT 20POS 0.1 GOLD PCB | CONN RCPT 26POS 0.1 GOLD PCB |
| Series | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Packaging | Tray | Tray | Tray | Tray |
Customers Also Interested in
Recommended Products
HIF3FB-10DA-2.54DSA(71)
Hirose Electric Co Ltd
HIF3FB-16DA-2.54DSA(71)
Hirose Electric Co Ltd
HIF3FB-20DA-2.54DSA(71)
Hirose Electric Co Ltd
HIF3FB-26DA-2.54DSA(71)
Hirose Electric Co Ltd

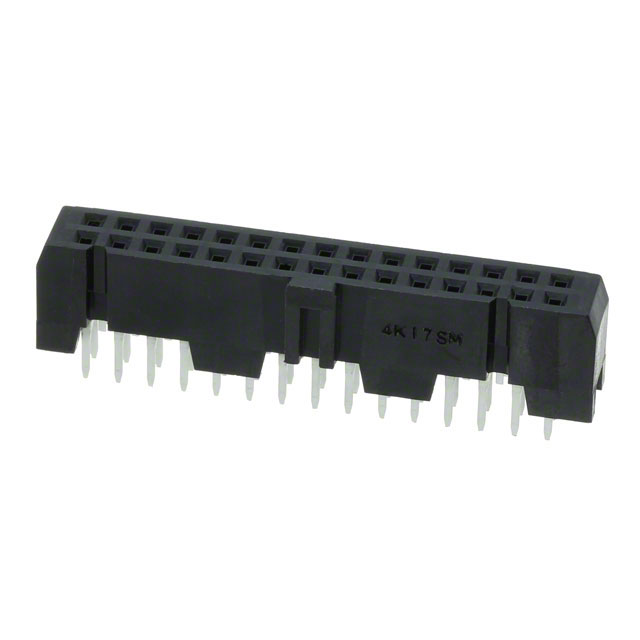

.jpg "HIF3FB-30DA-2.54DSA(71)")
HIF3FB-30DA-2.54DSA(71)
Hirose Electric Co Ltd

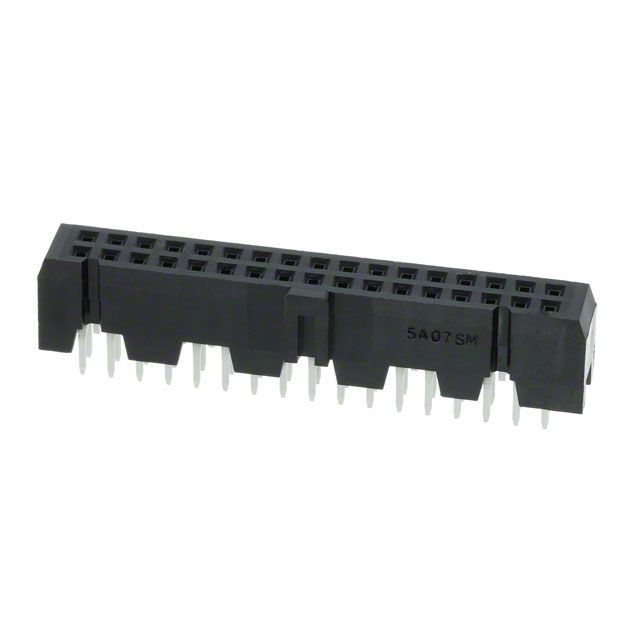

.jpg "HIF3FB-34DA-2.54DSA(71)")
HIF3FB-34DA-2.54DSA(71)
Hirose Electric Co Ltd
HIF3FB-34DA-2.54DSA(71)
Hirose Electric Co Ltd
HIF3FB-40DA-2.54DSA(71)
Hirose Electric Co Ltd
.jpg "HIF3FB-50DA-2.54DSA(71)")
HIF3FB-50DA-2.54DSA(71)
Hirose Electric Co Ltd

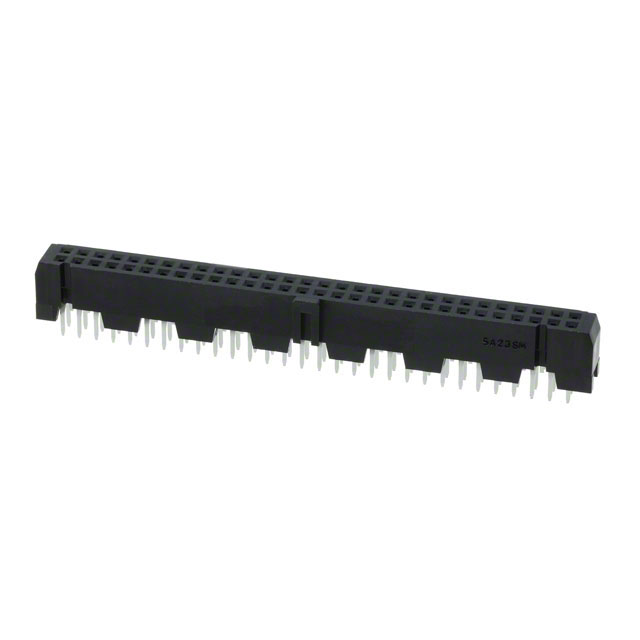

.jpg "HIF3FB-60DA-2.54DSA(71)")
