Product CatalogPart Number
HIF3H-10PB-2.54DSA(71)
Manufacturer
Hirose Electric Co LtdDescription
CONN HEADER VERT 10POS 2.54MM
Datasheet
DatasheetPackage
-
In Stock
34,123 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

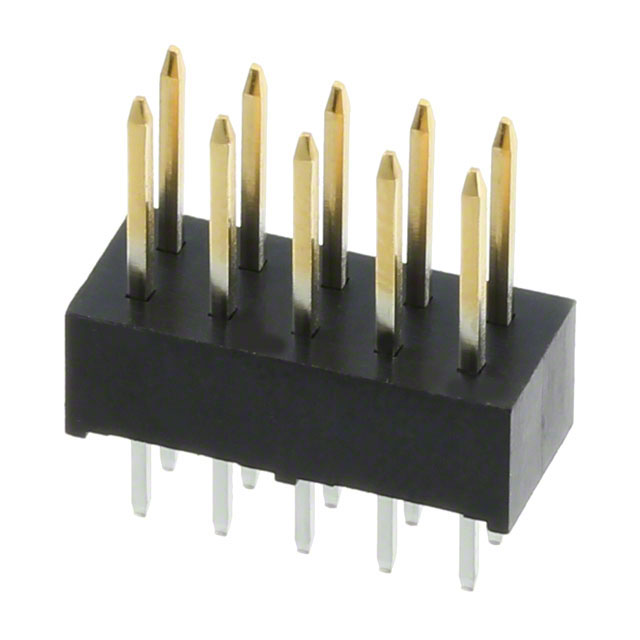

HIF3H-10PB-2.54DSA(71)
.jpg "HIF3H-10PB-2.54DSA(71)")
HIF3H-10PB-2.54DSA(71)
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Through Hole 10 position 0.100" (2.54mm)
Quick Inquiry
HIF3H-10PB-2.54DSA(71)
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Hirose Electric Co Ltd |
| Series | HIF3H |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.276" (7.00mm) |
| Contact Length - Post | 0.138" (3.50mm) |
| Overall Contact Length | 0.591" (15.00mm) |
| Insulation Height | 0.177" (4.50mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Features | - |
| Operating Temperature | -55°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3A |
| Voltage Rating | 300V |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Applications | - |
| Base Product Number | HIF3H |
