HIF6A-100PA-1.27DSA(71)
lmages are for reference only.HIF6A-100PA-1.27DSA(71)
CONN HEADER VERT 100POS 1.27MM
Datasheet-
18,315 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Connector Header Through Hole 100 position 0.050" (1.27mm)
HIF6A-100PA-1.27DSA(71)
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Hirose Electric Co Ltd |
| Series | HIF6 |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 100 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.205" (5.21mm) |
| Contact Length - Post | 0.110" (2.79mm) |
| Overall Contact Length | - |
| Insulation Height | 0.453" (11.50mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Features | Keying Slot |
| Operating Temperature | -55°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 0.5A |
| Voltage Rating | 300V |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Applications | - |
| Base Product Number | HIF6A |

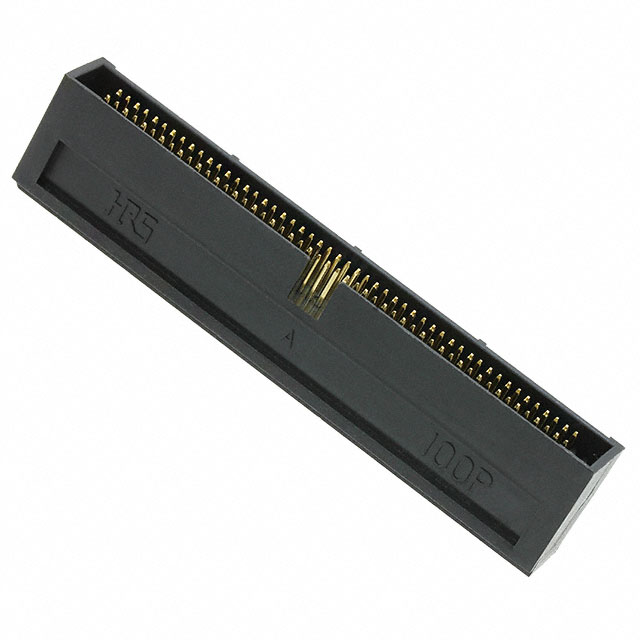

| Product Attribute | .jpg "HIF6A-100PA-1.27DS(71)") |
 |
|
|
| Part Number | HIF6A-100PA-1.27DS(71) | HIF3-10P-2.54DSA | HIF3-16P-2.54DSA | HIF3-40P-2.54DS |
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | CONN HEADER R/A 100P 1.27MM | CONN HEADER VERT 10POS 2.54MM | CONN HEADER VERT 16POS 2.54MM | CONN HEADER R/A 40POS 2.54MM |
| Series | HIF6 | HIF3 | HIF3 | HIF3 |
| Packaging | Tray | Bulk | Bulk | Bulk |
Recommended Products

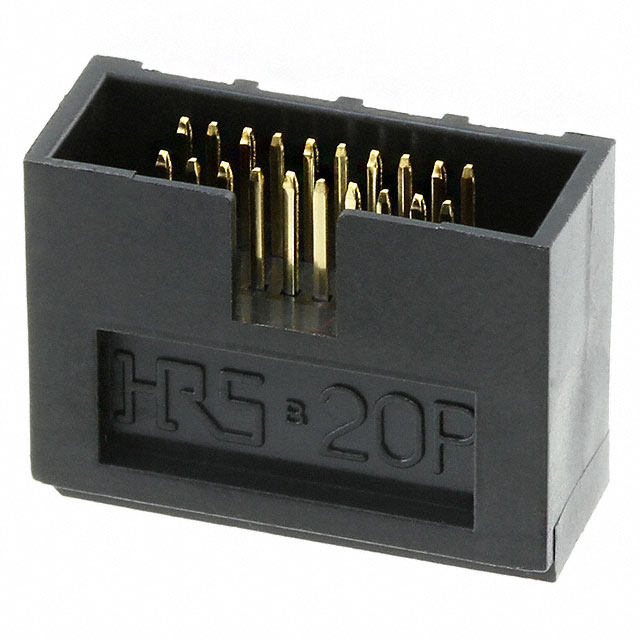

.jpg "HIF6A-20PA-1.27DS(71)")

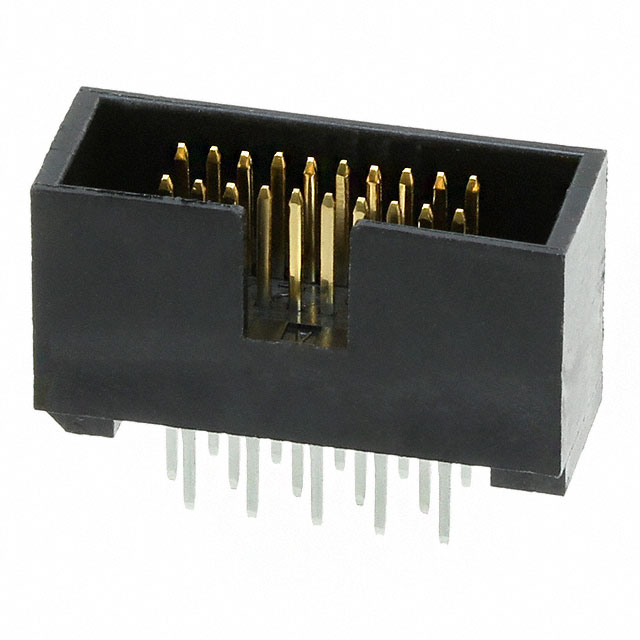

.jpg "HIF6A-20PA-1.27DSA(71)")

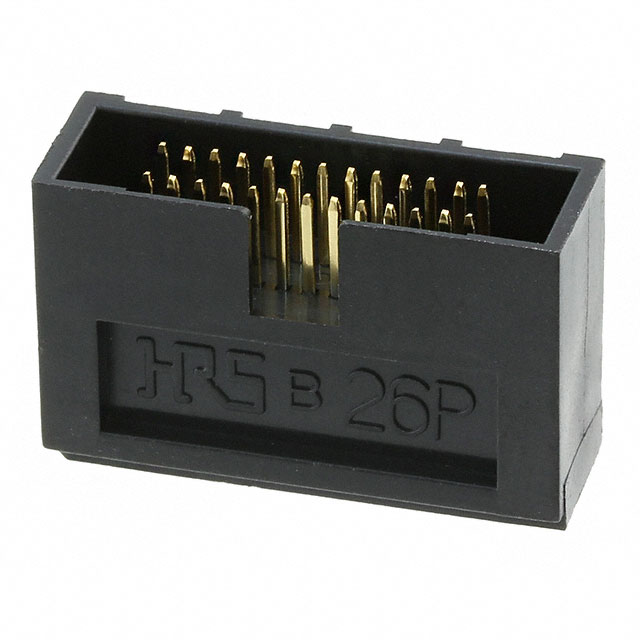

.jpg "HIF6A-26PA-1.27DS(71)")

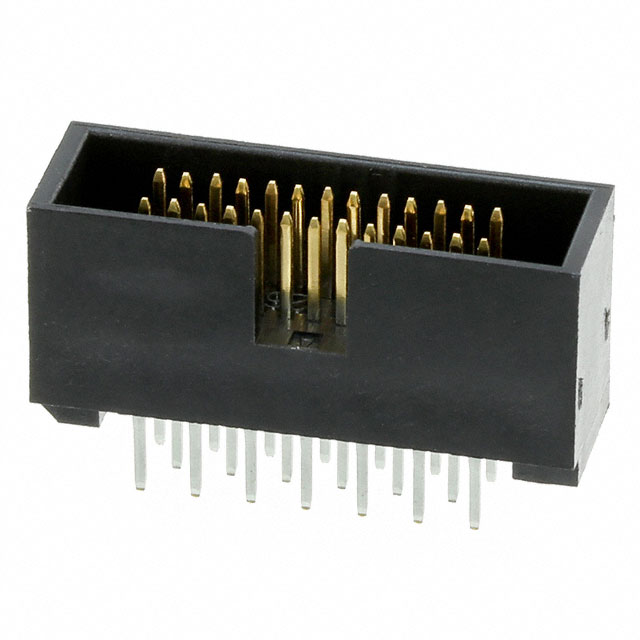

.jpg "HIF6A-26PA-1.27DSA(71)")

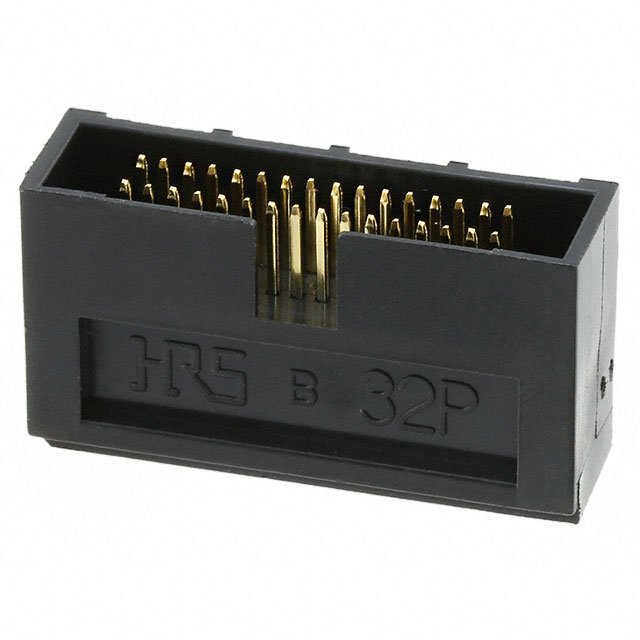

.jpg "HIF6A-32PA-1.27DS(71)")

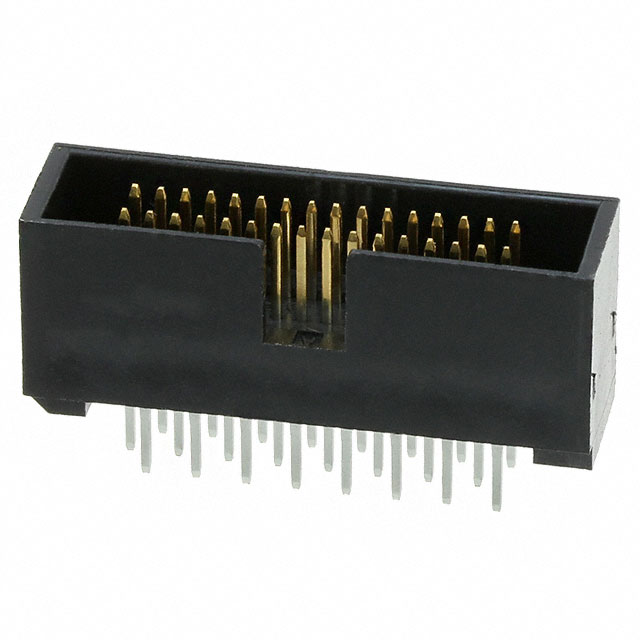

.jpg "HIF6A-32PA-1.27DSA(71)")

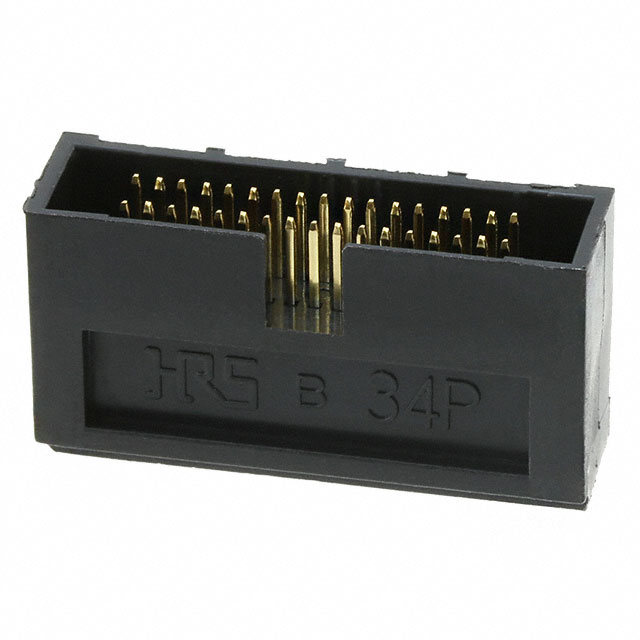

.jpg "HIF6A-34PA-1.27DS(71)")

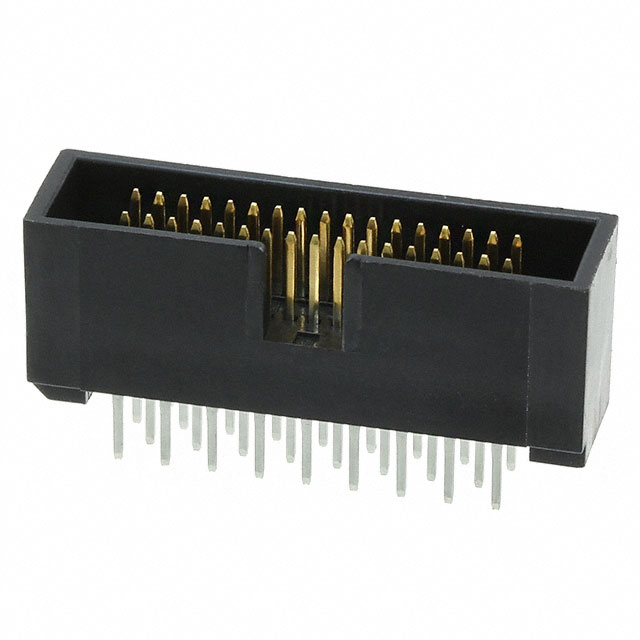

.jpg "HIF6A-34PA-1.27DSA(71)")

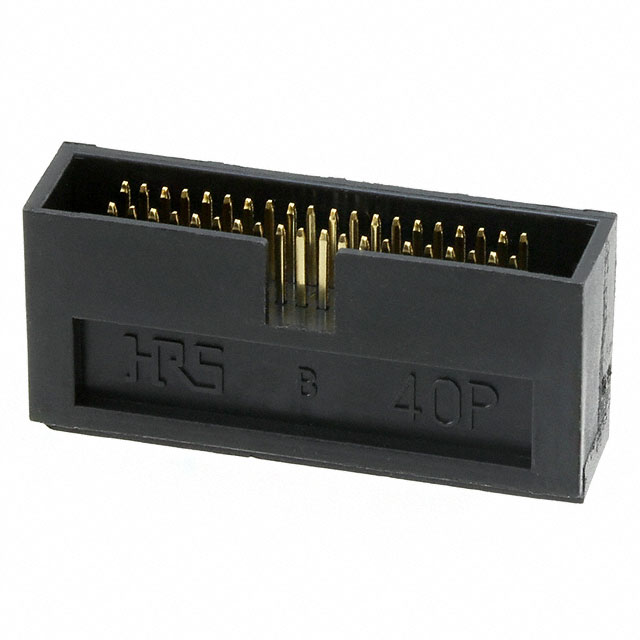

.jpg "HIF6A-40PA-1.27DS(71)")

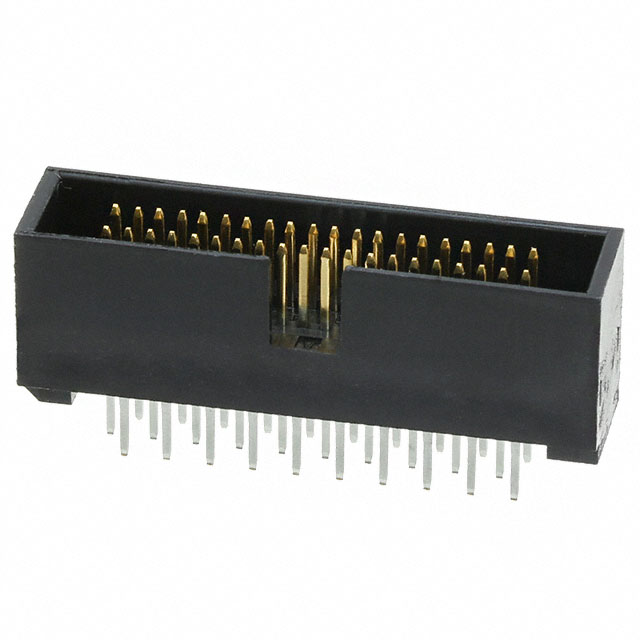

.jpg "HIF6A-40PA-1.27DSA(71)")

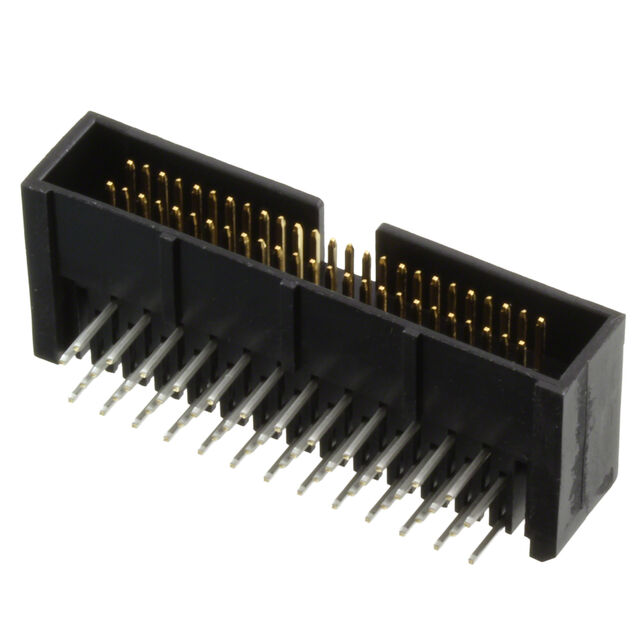

.jpg "HIF6A-50PA-1.27DS(71)")

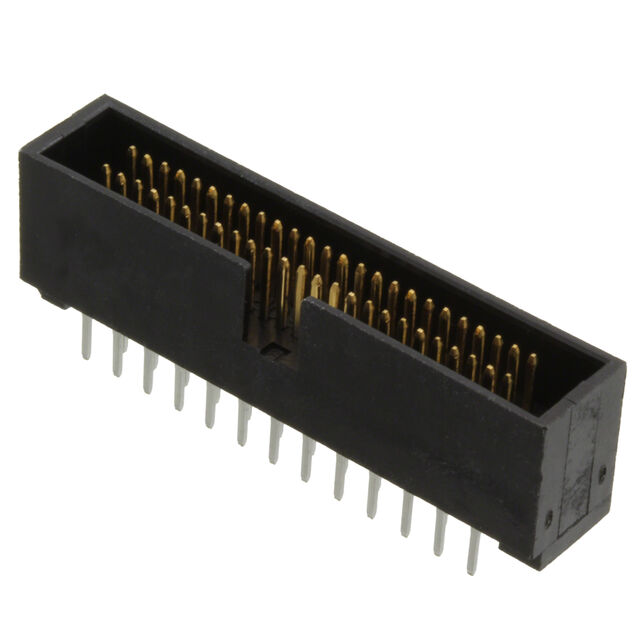

.jpg "HIF6A-50PA-1.27DSA(71)")

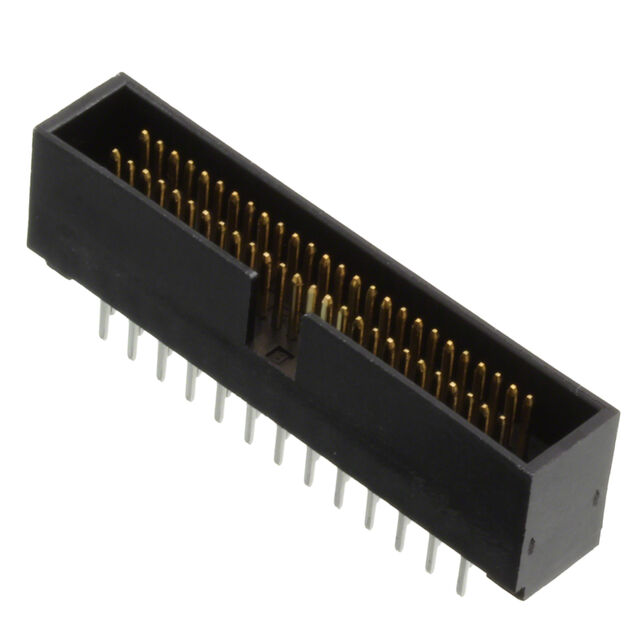

.jpg "HIF6A-52PA-1.27DSA(71)")

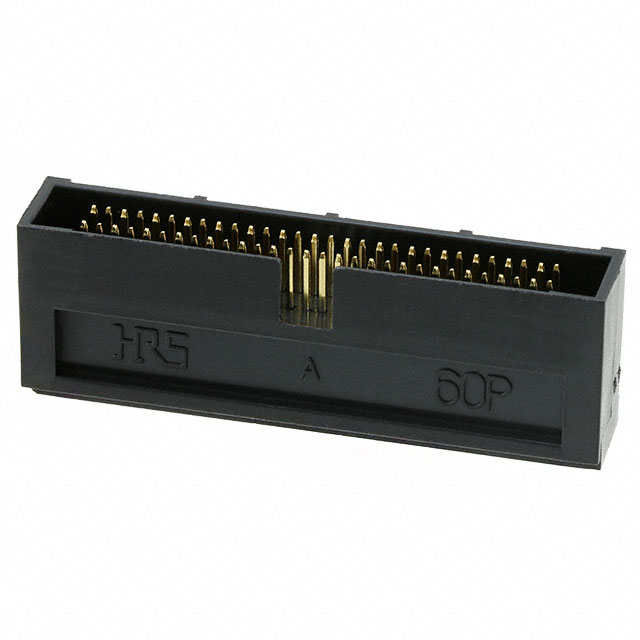

.jpg "HIF6A-60PA-1.27DS(71)")
