Product CatalogPart Number
HIF6B-50PA-1.27DSA(71)
Manufacturer
Hirose Electric Co LtdDescription
CONN HEADER VERT 50POS 1.27MM
Datasheet
DatasheetPackage
-
In Stock
30,811 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
HIF6B-50PA-1.27DSA(71)
.jpg "HIF6B-50PA-1.27DSA(71)")
HIF6B-50PA-1.27DSA(71)
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Through Hole 50 position 0.050" (1.27mm)
Quick Inquiry
HIF6B-50PA-1.27DSA(71)
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Hirose Electric Co Ltd |
| Series | HIF6 |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.205" (5.21mm) |
| Contact Length - Post | 0.110" (2.79mm) |
| Overall Contact Length | - |
| Insulation Height | 0.453" (11.50mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Features | - |
| Operating Temperature | -55°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 0.5A |
| Voltage Rating | 300V |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Applications | - |
| Base Product Number | HIF6B |
Parts with Similar Specifications
| Product Attribute |  |
|
|
|
| Part Number | HIF6B-50PA-1.27DS(71) | HIF6B-50PA-1.27DSAL(71) | HIF6B-52PA-1.27DS(71) | HIF6B-52PA-1.27DSA(71) |
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | CONN HEADER R/A 50POS 1.27MM | CONN HEADER VERT 50POS 1.27MM | CONN HEADER R/A 52POS 1.27MM | CONN HEADER VERT 52POS 1.27MM |
| Series | HIF6 | HIF6 | HIF6 | HIF6 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products
HIF6B-100PA-1.27DS(71)
Hirose Electric Co Ltd

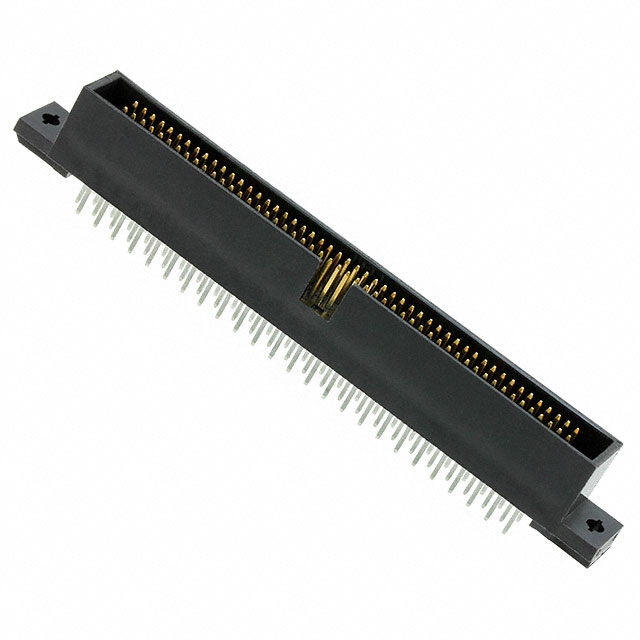

.jpg "HIF6B-100PA-1.27DSA(71)")
HIF6B-100PA-1.27DSA(71)
Hirose Electric Co Ltd
HIF6B-100PA-1.27DSAL(71)
Hirose Electric Co Ltd
HIF6B-20PA-1.27DS(71)
Hirose Electric Co Ltd
HIF6B-20PA-1.27DSA(71)
Hirose Electric Co Ltd
HIF6B-26PA-1.27DS(71)
Hirose Electric Co Ltd
HIF6B-26PA-1.27DSA(71)
Hirose Electric Co Ltd
HIF6B-26PA-1.27DSAL(71)
Hirose Electric Co Ltd
HIF6B-32PA-1.27DS(71)
Hirose Electric Co Ltd
HIF6B-32PA-1.27DSA(71)
Hirose Electric Co Ltd
HIF6B-32PA-1.27DSAL(71)
Hirose Electric Co Ltd
HIF6B-34PA-1.27DS(71)
Hirose Electric Co Ltd
HIF6B-34PA-1.27DSA(71)
Hirose Electric Co Ltd
HIF6B-34PA-1.27DSL(71)
Hirose Electric Co Ltd

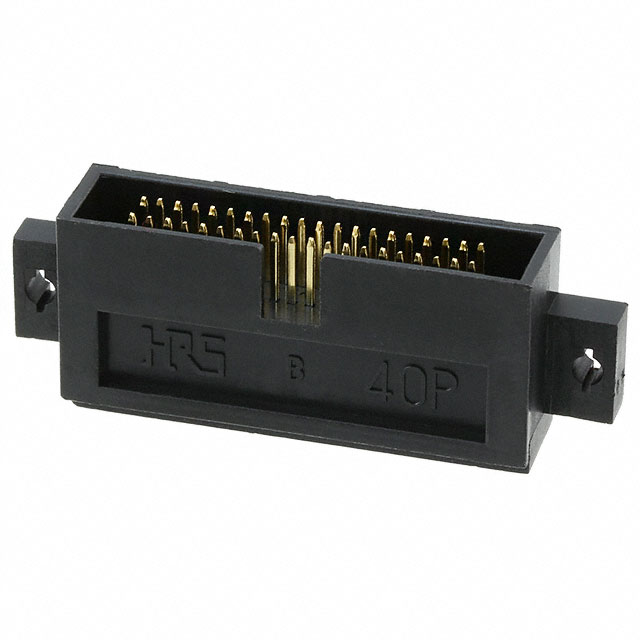

.jpg "HIF6B-40PA-1.27DS(71)")
