HIP4086AB
lmages are for reference only.HIP4086AB

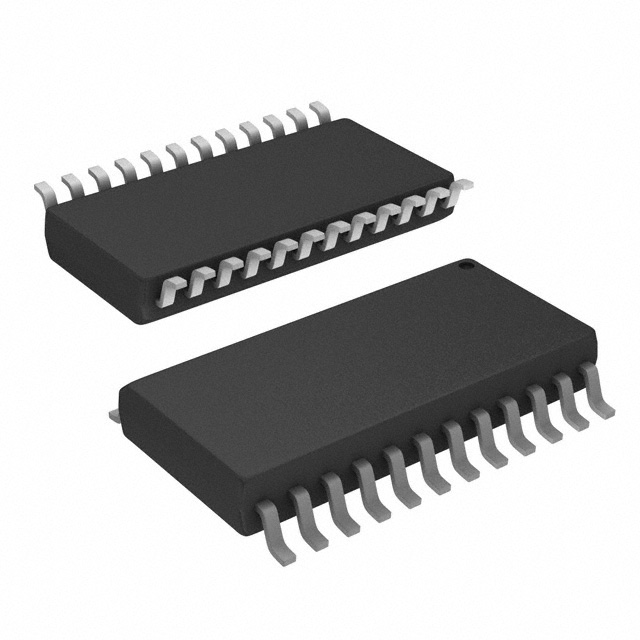

IC HALF BRIDGE DRIVER 24SOIC
Datasheet24-SOIC (0.295", 7.50mm Width)
89,832 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Half Bridge Driver DC Motors, General Purpose N-Channel MOSFET 24-SOIC
HIP4086AB
| Category | Integrated Circuits (ICs) - Power Management PMIC - Full Half-Bridge H Bridge Drivers |
| Manufacturer | Renesas Electronics Corporation |
| Series | - |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| Output Configuration | Half Bridge |
| Applications | DC Motors, General Purpose |
| Interface | Logic, PWM |
| Load Type | Capacitive and Resistive |
| Technology | N-Channel MOSFET |
| Rds On (Typ) | - |
| Current - Output / Channel | - |
| Current - Peak Output | 500mA |
| Voltage - Supply | 7V ~ 15V |
| Voltage - Load | 7V ~ 15V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | - |
| Mounting Type | Surface Mount |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
| Base Product Number | HIP4086 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|
| Part Number | HIP4086AABZ | HIP4086AABZ | HIP4086AABZT | HIP4086AABZT |
| Manufacturer | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC HALF BRIDGE DRIVER 24SOIC | IC HALF BRIDGE DRIVER 24SOIC | IC HALF BRIDGE DRIVER 24SOIC | IC HALF BRIDGE DRIVER 24SOIC |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tape & Reel (TR) |
