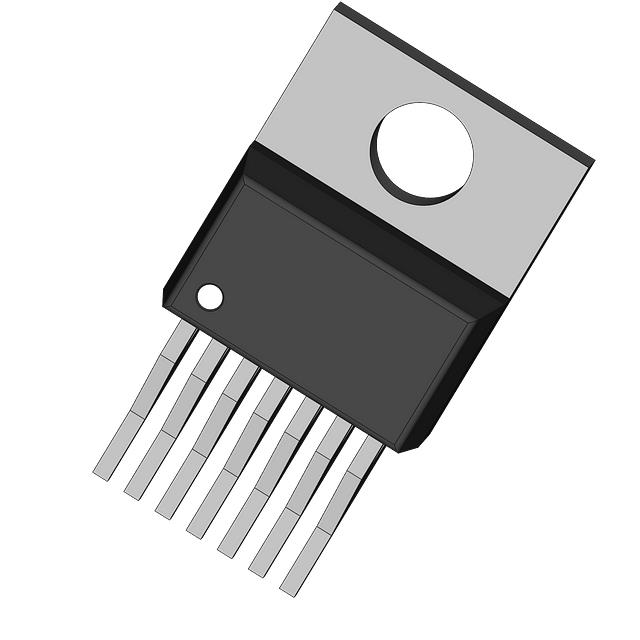

Half-Bridge Gate Driver IC Non-Inverting 7-Gullwing SIP
HIP5016IS
| Category | Integrated Circuits (ICs) - Power Management PMIC - Gate Drivers |
| Manufacturer | Intersil |
| Series | SynchroFET™ |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Driven Configuration | Half-Bridge |
| Channel Type | Synchronous |
| Number of Drivers | 1 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 10.8V ~ 13.2V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | - |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 20ns, 20ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Supplier Device Package | 7-Gullwing SIP |
| Base Product Number | HIP5016 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | HIP5016IS1 | HIP5011IS | HIP5011IS1 | HIP5015IS |
| Manufacturer | Harris Corporation | Intersil | Intersil | Intersil |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | HB BASED PERIPHERAL DRIVER W/PWM | HB BASED PERIPHERAL DRIVER | HB BASED PERIPHERAL DRIVER | HB BASED PERIPHERAL DRIVER |
| Series | - | SynchroFET™ | SynchroFET™ | SynchroFET™ |
| Packaging | Bulk | Bulk | Bulk | Bulk |
