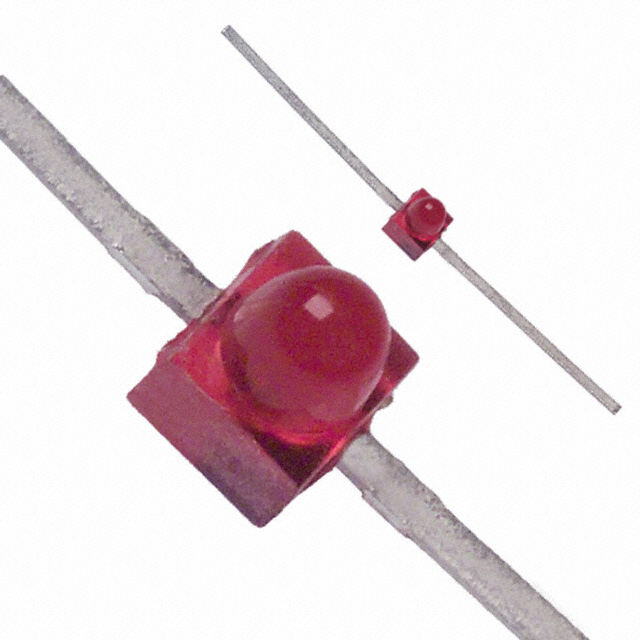

HLMP-Q150-F001L
lmages are for reference only.HLMP-Q150-F001L
LED RED DIFFUSED AXIAL T/H
DatasheetAxial, Right Angle Bend (2.54mm Center)
79,157 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Red 637nm LED Indication - Discrete 1.6V Axial, Right Angle Bend (2.54mm Center)
HLMP-Q150-F001L
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Broadcom Limited |
| Series | HLMP-Qxxx |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Color | Red |
| Configuration | Standard |
| Lens Color | Red |
| Lens Transparency | Diffused |
| Millicandela Rating | 1.8mcd |
| Lens Style | Round with Domed Top |
| Lens Size | 1.78mm Dia |
| Voltage - Forward (Vf) (Typ) | 1.6V |
| Current - Test | 1mA |
| Viewing Angle | 90° |
| Mounting Type | Through Hole |
| Wavelength - Dominant | 637nm |
| Wavelength - Peak | 645nm |
| Features | - |
| Package / Case | Axial, Right Angle Bend (2.54mm Center) |
| Supplier Device Package | Axial |
| Size / Dimension | 2.08mm L x 2.21mm W |
| Height (Max) | 2.92mm |
| Base Product Number | HLMP-Q150 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |

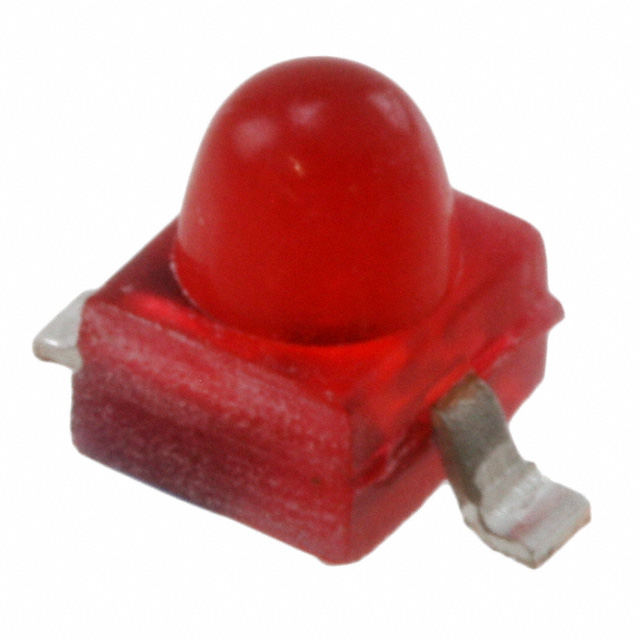

| Part Number | HLMP-Q150 | HLMP-Q150-F0011 | HLMP-Q150-F0031 | HLMP-0301 |
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RED DIFFUSED AXIAL T/H AXIAL | LED RED DIFFUSED GULL WING SMD | LED RED DIFFUSED ZBEND SMD | LED RED DIFFUSED RECTANGULAR T/H |
| Series | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Bulk |
