HMSR 20-SMS

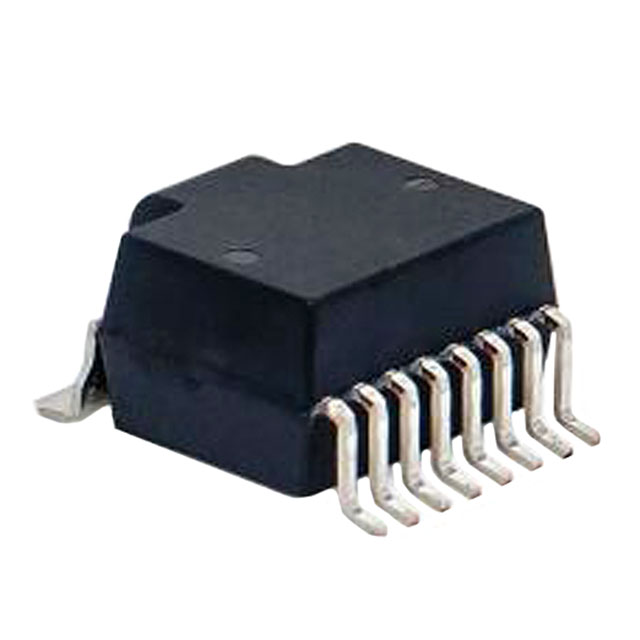

lmages are for reference only.HMSR 20-SMS
SURFACT MT, 20A SENSOR WITH HIGH
Datasheet16-PowerSOIC (0.295", 7.50mm Width), 10 Leads
99,348 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Current Sensor 20A 1 Channel Hall Effect, Open Loop Bidirectional 16-PowerSOIC (0.295", 7.50mm Width), 10 Leads
HMSR 20-SMS
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | LEM USA Inc. |
| Series | HMSR |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect, Open Loop |
| Current - Sensing | 20A |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | 40mV/A |
| Frequency | 300kHz |
| Linearity | ±0.5% |
| Accuracy | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Response Time | - |
| Current - Supply (Max) | 26mA |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Bidirectional |
| Mounting Type | Surface Mount |
| Package / Case | 16-PowerSOIC (0.295", 7.50mm Width), 10 Leads |
| Supplier Device Package | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | HMSR 10-SMS | HMSR 15-SMS | HMSR 30-SMS | HMSR 6-SMS |
| Manufacturer | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SURFACT MT, 10A SENSOR WITH HIGH | SURFACT MT, 15A SENSOR WITH HIGH | SURFACT MT, 30A SENSOR WITH HIGH | SURFACT MT, 6A SENSOR WITH HIGH |
| Series | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
