HOYS 560-S/SP33-1106

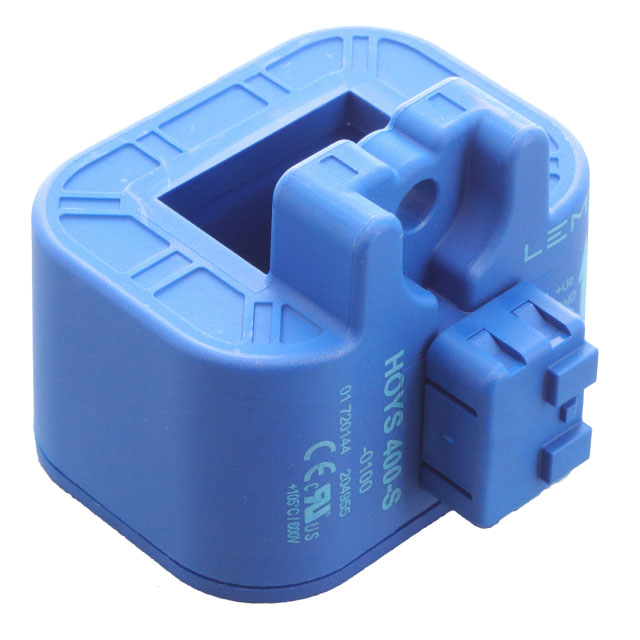

lmages are for reference only.HOYS 560-S/SP33-1106
560A 3.3V OL BUS BAR MOUNT
DatasheetModule, Single Pass Through
29,800 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Current Sensor 560A 1 Channel Hall Effect, Open Loop Bidirectional Module, Single Pass Through
HOYS 560-S/SP33-1106
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | LEM USA Inc. |
| Series | HOYS-S/SP33 |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect, Open Loop |
| Current - Sensing | 560A |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | 0.821mV/A |
| Frequency | DC ~ 180kHz |
| Linearity | ±0.5% |
| Accuracy | - |
| Voltage - Supply | 3.14V ~ 3.46V |
| Response Time | 3µs |
| Current - Supply (Max) | 25mA |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Bidirectional |
| Mounting Type | Chassis Mount |
| Package / Case | Module, Single Pass Through |
| Supplier Device Package | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | HOYS 560-S-0100 | HOYS 560-SW-0000 | HOYS 100-S-0100 | HOYS 100-S/SP33-1106 |
| Manufacturer | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | 560A OPEN LOOP BAR BAR MOUNT | Linear IC | 100 A OPEN LOOP BUS BAR MOUNT | 100A 3.3V OL BUS BAR MOUNT |
| Series | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
