Product CatalogPart Number
HPFC-102-01-T-D-04
Manufacturer
Samtec Inc.Description
.100" SIGNAL/POWER COMBO SOCKET
Datasheet
DatasheetPackage
-
In Stock
14,820 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
HPFC-102-01-T-D-04
HPFC-102-01-T-D-04
lmages are for reference only.Payment Methods
Delivery Services
8 (4 + 4 Power) Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
Quick Inquiry
HPFC-102-01-T-D-04
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Receptacles-Female Sockets |
| Manufacturer | Samtec Inc. |
| Series | HPFC |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 8 (4 + 4 Power) |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Black |
| Insulation Height | 0.354" (9.00mm) |
| Contact Length - Post | 0.089" (2.26mm) |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | - |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Applications | - |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Contact Shape | Square |
| Contact Material | Beryllium Copper |
| Contact Finish Thickness - Post | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
 |
|
|
| Part Number | HPFC-102-01-T-D-03 | HPFC-102-01-L-D-02 | HPFC-102-01-L-D-03 | HPFC-102-01-L-D-04 |
| Manufacturer | Samtec Inc. | Samtec Inc. | Samtec Inc. | Samtec Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | .100" SIGNAL/POWER COMBO SOCKET | .100" SIGNAL/POWER COMBO SOCKET | .100" SIGNAL/POWER COMBO SOCKET | CONN RCPT 8POS 0.1 GOLD PCB |
| Series | Samtec Inc. | Samtec Inc. | Samtec Inc. | Samtec Inc. |
| Packaging | Tube | Tube | Tube | Tube |
Customers Also Interested in
Recommended Products

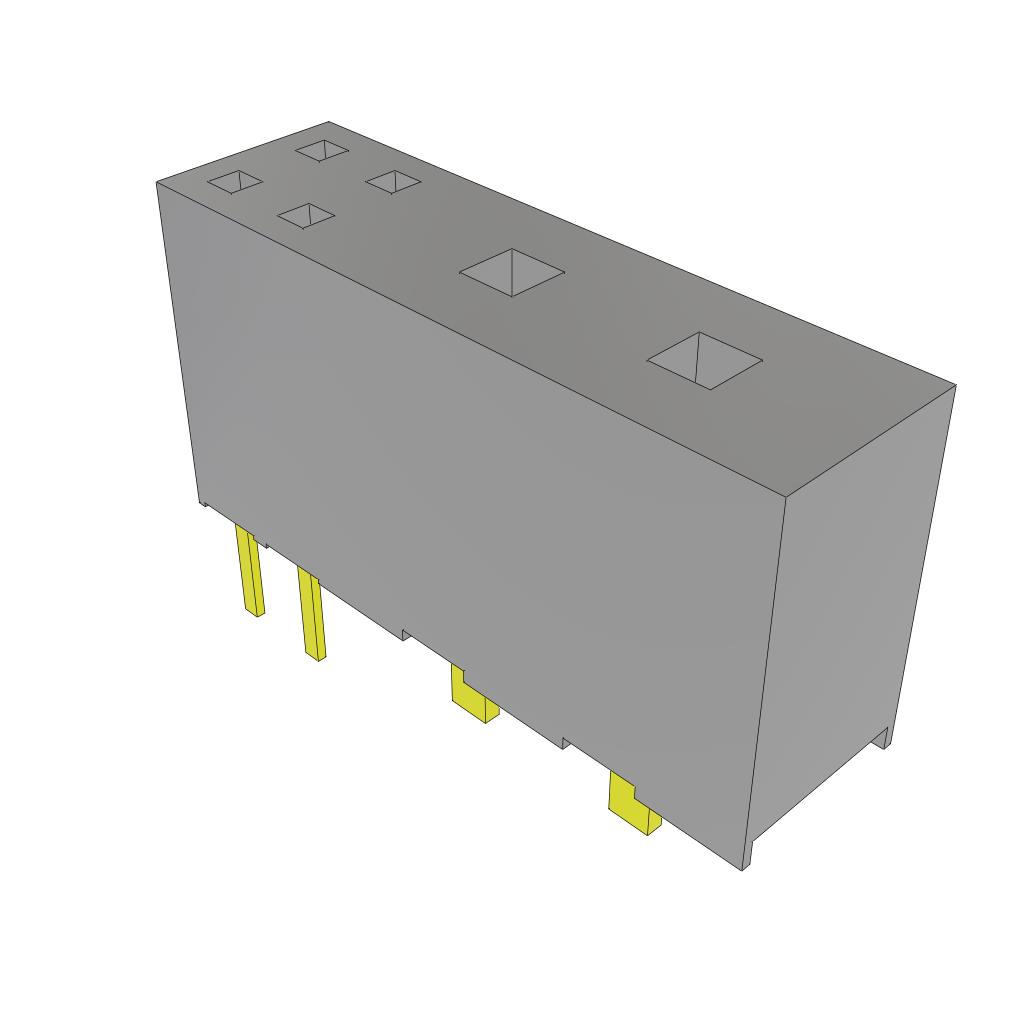

HPFC-102-01-L-D-02
Samtec Inc.
HPFC-102-01-L-D-03
Samtec Inc.
HPFC-102-01-L-D-04
Samtec Inc.
HPFC-102-01-LM-D-04
Samtec Inc.
HPFC-102-01-T-D-03
Samtec Inc.
HPFC-102-02-L-D-02
Samtec Inc.
HPFC-102-02-L-D-03
Samtec Inc.

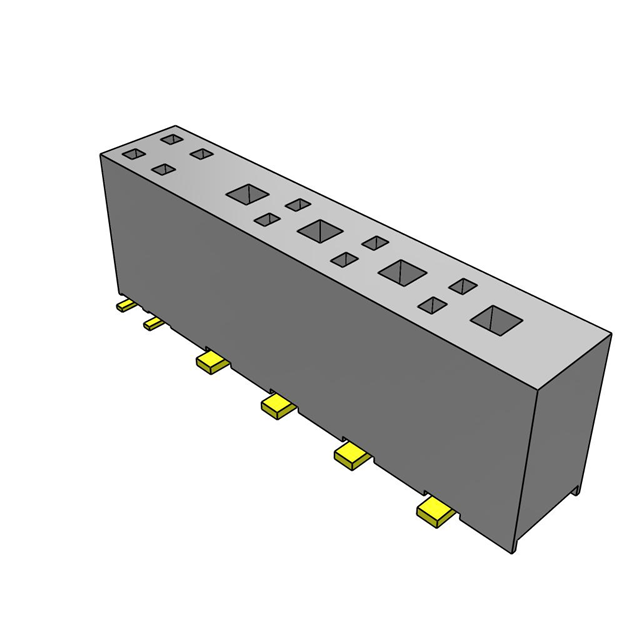

HPFC-102-02-L-D-03-LC
Samtec Inc.

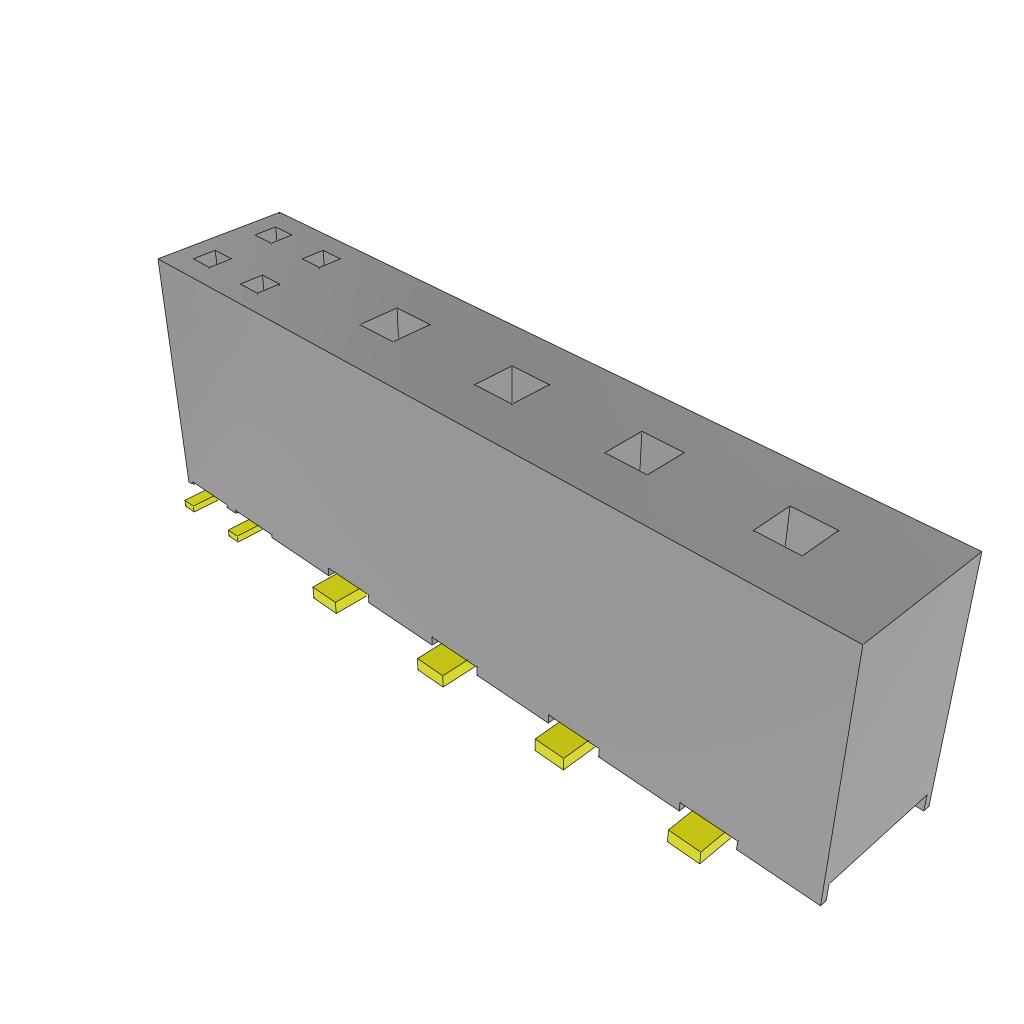

HPFC-102-02-L-D-04
Samtec Inc.
HPFC-102-02-L-D-04-LC
Samtec Inc.
HPFC-102-02-T-D-02
Samtec Inc.
HPFC-102-02-T-D-04
Samtec Inc.
HPFC-103-01-L-D-02
Samtec Inc.

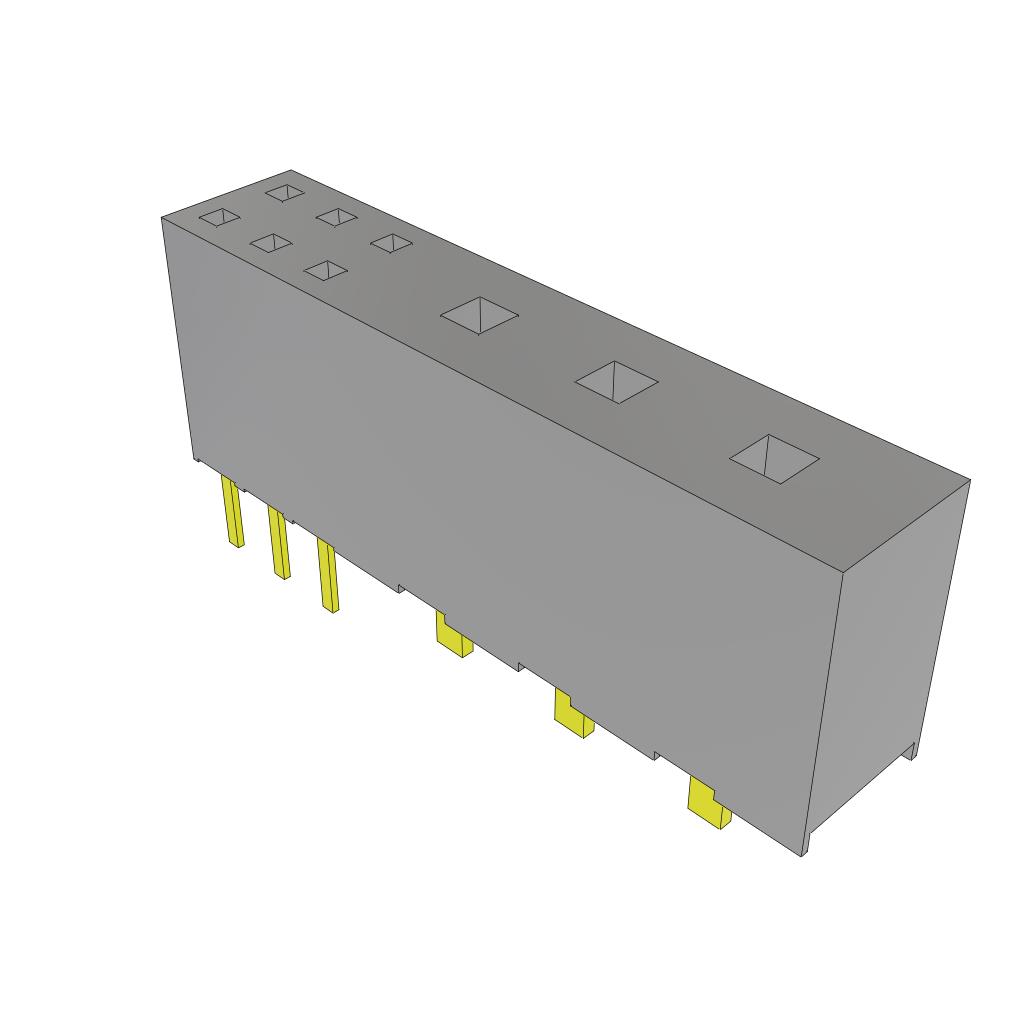

HPFC-103-01-L-D-03
