Product CatalogPart Number
HQCCWM101GAH6A
Manufacturer
KYOCERA AVXDescription
CAP CER 100PF 2.5KV P90 2325
Datasheet
DatasheetPackage
2325 (5864 Metric)
In Stock
65,700 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
HQCCWM101GAH6A
HQCCWM101GAH6A
lmages are for reference only.Payment Methods
Delivery Services
100 pF ±2% 2500V (2.5kV) Ceramic Capacitor P90 2325 (5864 Metric)
Quick Inquiry
HQCCWM101GAH6A
Specifications
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | KYOCERA AVX |
| Series | Hi-Q® |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 100 pF |
| Tolerance | ±2% |
| Voltage - Rated | 2500V (2.5kV) |
| Temperature Coefficient | P90 |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Q, Low Loss, Ultra Low ESR, High Voltage |
| Ratings | - |
| Applications | RF, Microwave, High Frequency |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 2325 (5864 Metric) |
| Size / Dimension | 0.230" L x 0.250" W (5.84mm x 6.35mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.145" (3.68mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

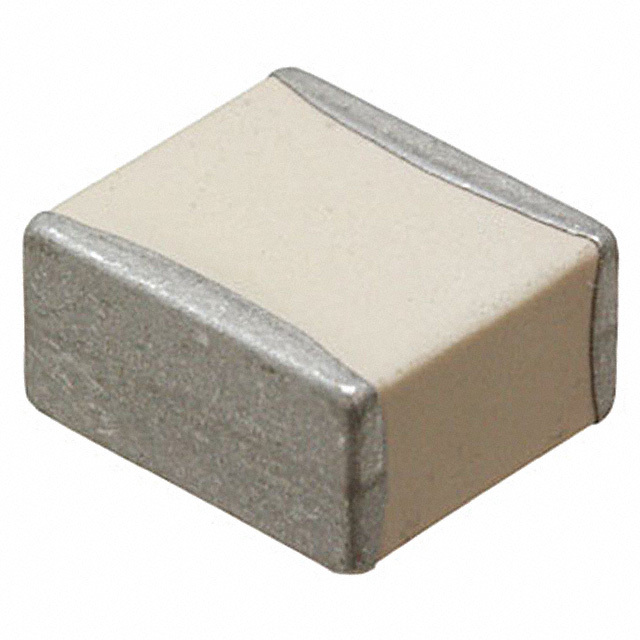

| Part Number | HQCCWM100GAH6A | HQCC7M152GAH6A | HQCC9M222GAH6A | HQCCAA102KAT6A |
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 10PF 2.5KV P90 2325 | CAP CER 1500PF 500V P90 2325 | CAP CER 2200PF 300V P90 2325 | CAP CER 1000PF 1KV NP0 2325 |
| Series | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | |
| Packaging | Tray | Tray | Tray |
Customers Also Interested in
Recommended Products
HQCCWA120GAT6A
KYOCERA AVX
HQCCWA121GAT6A
KYOCERA AVX
HQCCWA150GAT6A
KYOCERA AVX
HQCCWA151JAT6A
KYOCERA AVX
HQCCWA200GAT6A
KYOCERA AVX
HQCCWA220GAT6A
KYOCERA AVX
HQCCWA221GAT6A
KYOCERA AVX

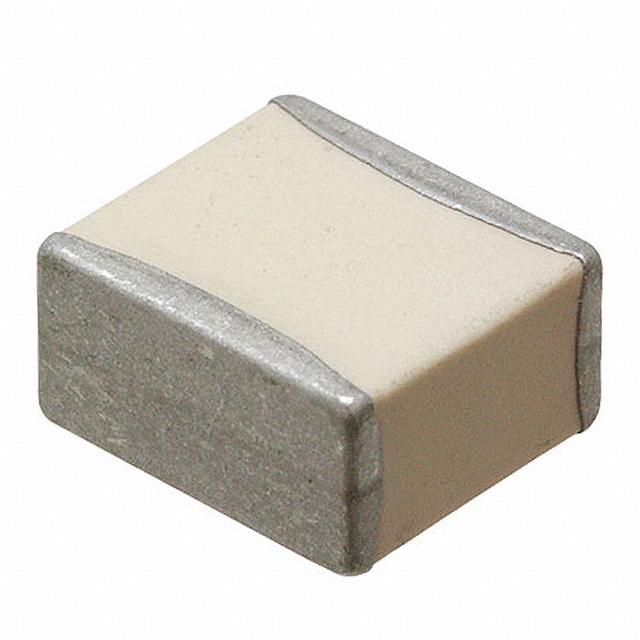

HQCCWA331GAT9A
