HRPM-A-060S-RE-E

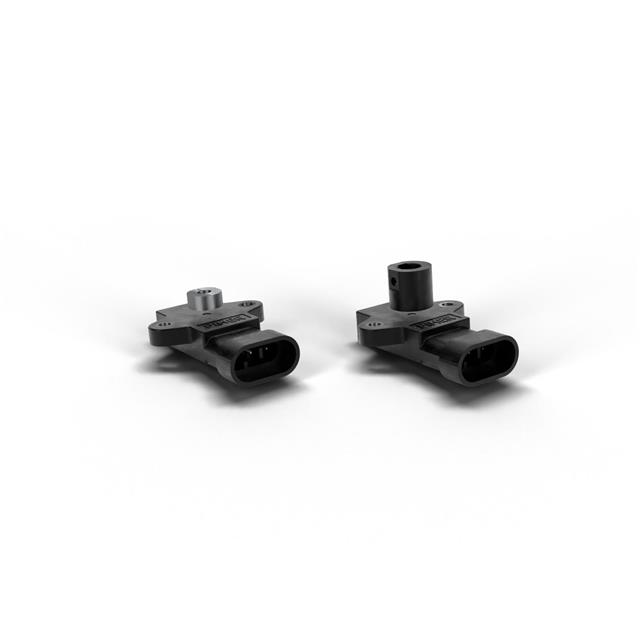

lmages are for reference only.HRPM-A-060S-RE-E
HALL-EFFECT ROTARY POSITION SENS
DatasheetBox with Connector
61,862 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Hall Effect Sensor Rotary Position External Magnet, Not Included Connector
HRPM-A-060S-RE-E
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Amphenol Piher Sensing Systems |
| Series | HRPM |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| For Measuring | Rotary Position |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | 0° ~ 60° |
| Linear Range | - |
| Output | Analog Voltage |
| Output Signal | Clockwise Increase |
| Actuator Type | External Magnet, Not Included |
| Linearity | ±1% |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 7V ~ 30V |
| Mounting Type | Chassis Mount |
| Termination Style | Connector |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | Box with Connector |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | HRPM-A-060S-05-A | HRPM-A-060S-05-E | HRPM-A-060S-RE-A | HRPM-A-050S-05-A |
| Manufacturer | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | HALL-EFFECT ROTARY POSITION SENS | HALL-EFFECT ROTARY POSITION SENS | HALL-EFFECT ROTARY POSITION SENS | HALL-EFFECT ROTARY POSITION SENS |
| Series | HRPM | HRPM | HRPM | HRPM |
| Packaging | Bulk | Bulk | Bulk | Bulk |
