HRSRES05A090C
lmages are for reference only.HRSRES05A090C
SENSOR ROTARY 90 DEG SOLDER LUG
DatasheetModule
23,257 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Hall Effect Sensor Rotary Position Round Shaft Solder Lug
HRSRES05A090C
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | HRS |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| For Measuring | Rotary Position |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | 0° ~ 90°, 0° ~ 90° |
| Linear Range | - |
| Output | Analog Voltage |
| Output Signal | Clockwise Increase |
| Actuator Type | Round Shaft |
| Linearity | ±2% |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 5V |
| Mounting Type | Panel Mount |
| Termination Style | Solder Lug |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | Module |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

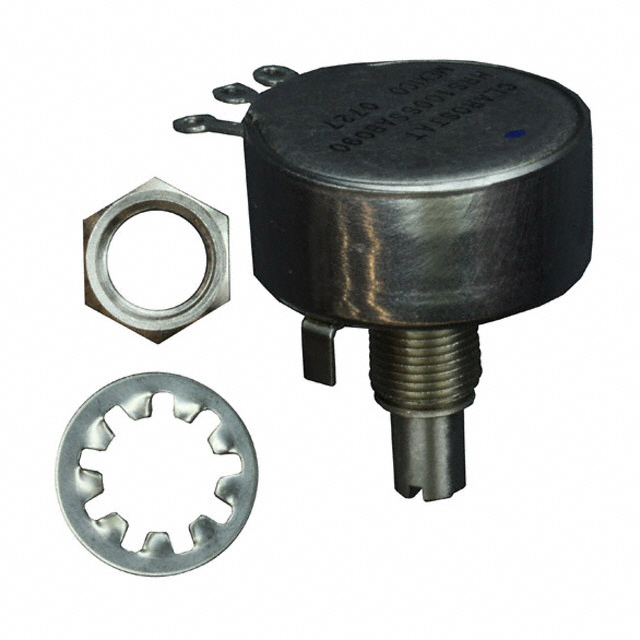

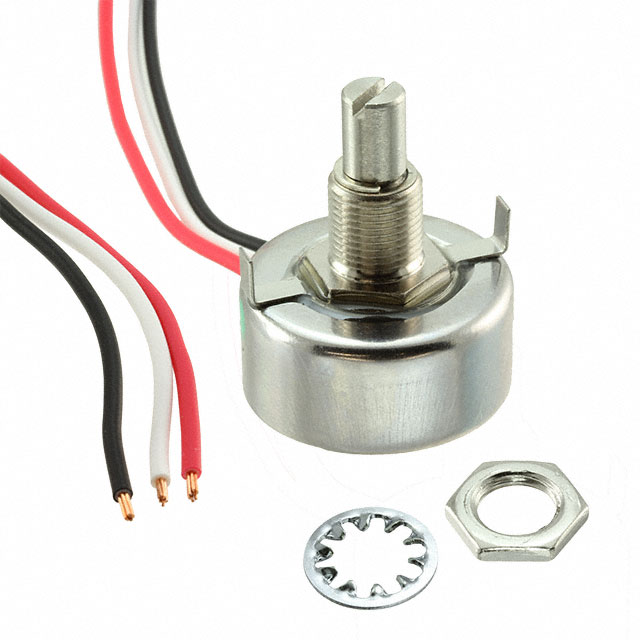

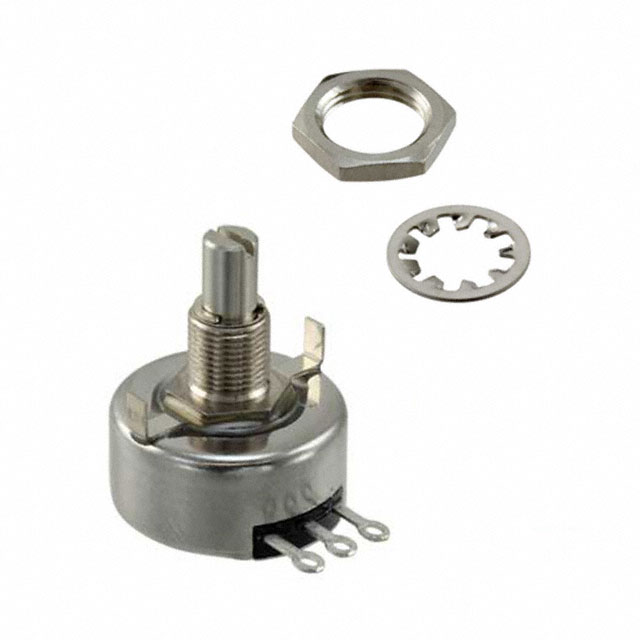

| Part Number | HRS100SSAB090 | HRS100SSAB180 | HRS100SWAB090 | MLX90513GGO-CAA-100-SP |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Melexis Technologies NV |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | SENSOR ROTARY 90 DEG SOLDER LUG | SENSOR ROTARY 180 DEG SOLDER LUG | SENSOR ROTARY 90 DEG WIRE LEADS | INDUCTIVE POSITION SENSOR ASSP W |
| Series | HRS | HRS | HRS | - |
| Packaging | Bulk | Bulk | Box | Bulk |
