HSCDDRD005PD3A3
lmages are for reference only.HSCDDRD005PD3A3
SENSOR 5PSID 0.08" 12BIT 8DIP
Datasheet8-DIP (0.524", 13.30mm), Dual Ports, Opposite Sides
18,164 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor ±5PSI (±34.47kPa) Differential Male - 0.08" (1.93mm) Tube, Dual 12 b 8-DIP (0.524", 13.30mm), Dual Ports, Opposite Sides
HSCDDRD005PD3A3
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | TruStability® HSC |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | - |
| Applications | Board Mount |
| Pressure Type | Differential |
| Operating Pressure | ±5PSI (±34.47kPa) |
| Output Type | I2C |
| Output | 12 b |
| Accuracy | ±0.25% |
| Voltage - Supply | 3V ~ 3.6V |
| Port Size | Male - 0.08" (1.93mm) Tube, Dual |
| Port Style | Barbed |
| Features | Amplified Output, Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | ±30PSI (±206.84kPa) |
| Operating Temperature | -20°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.524", 13.30mm), Dual Ports, Opposite Sides |
| Supplier Device Package | 8-DIP |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|

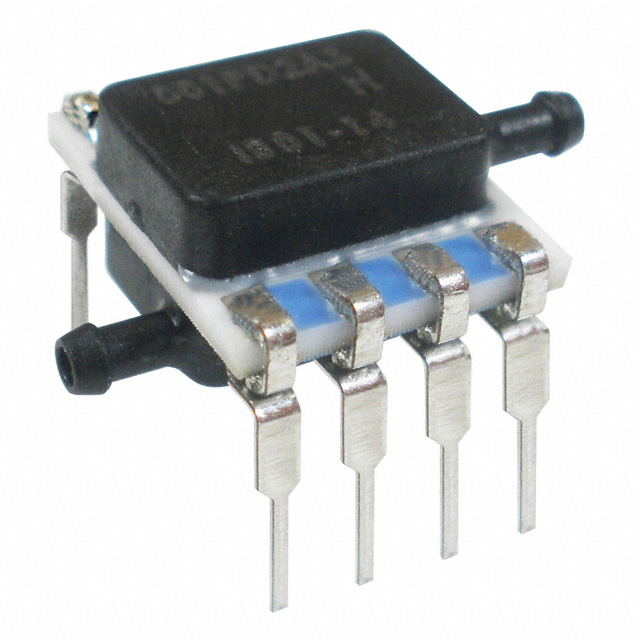

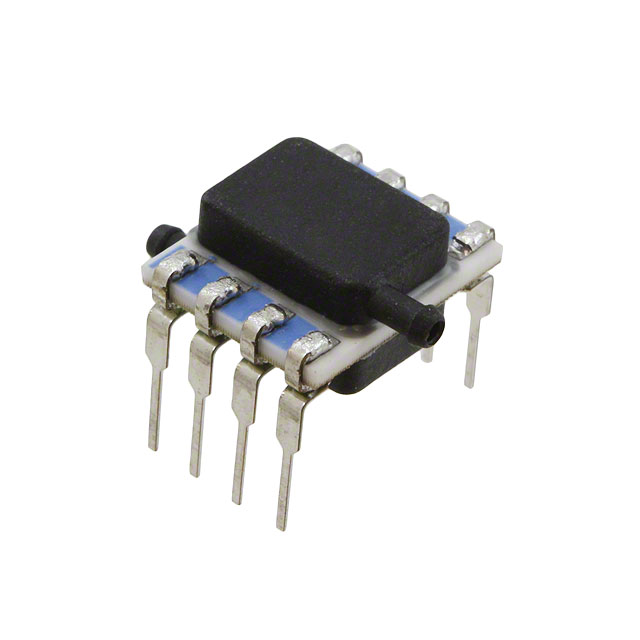

| Part Number | HSCDDRD001PD2A3 | HSCDDRD001PD2A3 | HSCDDRN001BDSA5 | HSCDDRN001BDSA5 |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR 1PSID 0.08" 12BIT 8DIP | SENSOR 1PSID 0.08" 12BIT 8DIP | SENSOR 14.5PSID 0.08" 12BIT 8DIP | SENSOR 14.5PSID 0.08" 12BIT 8DIP |
| Series | TruStability® HSC | TruStability® HSC | TruStability® HSC | TruStability® HSC |
| Packaging | Bulk | Bulk | Bulk | Bulk |
