HSCDLND100PGSA3

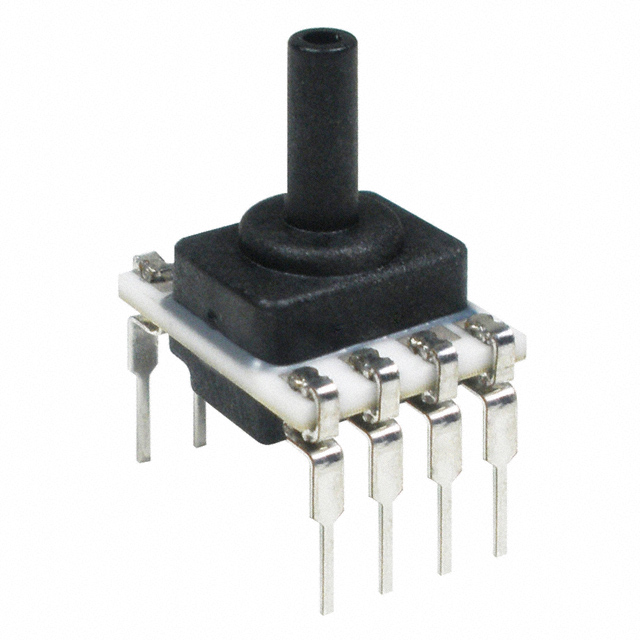

lmages are for reference only.HSCDLND100PGSA3
SENSOR 100PSIG 0.1" 12BIT 8DIP
Datasheet8-DIP (0.524", 13.30mm), Top Port
92,106 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 100PSI (689.48kPa) Vented Gauge Male - 0.1" (2.47mm) Tube 12 b 8-DIP (0.524", 13.30mm), Top Port
HSCDLND100PGSA3
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | TruStability® HSC |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | HSCDLND |
| Applications | Board Mount |
| Pressure Type | Vented Gauge |
| Operating Pressure | 100PSI (689.48kPa) |
| Output Type | SPI |
| Output | 12 b |
| Accuracy | ±0.25% |
| Voltage - Supply | 3V ~ 3.6V |
| Port Size | Male - 0.1" (2.47mm) Tube |
| Port Style | Barbless |
| Features | Amplified Output, Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 250PSI (1723.69kPa) |
| Operating Temperature | -20°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.524", 13.30mm), Top Port |
| Supplier Device Package | 8-DIP |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | HSCDLND001PG2A3 | HSCDLND005PGSA3 | HSCDLND005PGSA3 | HSCDLND030PASA5 |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR 1PSIG 0.1" 12BIT 8DIP | SENSOR 5PSIG 0.1" 12BIT 8DIP | SENSOR 5PSIG 0.1" 12BIT 8DIP | SENSOR 30PSIA 0.1" 12BIT 8DIP |
| Series | TruStability® HSC | TruStability® HSC | TruStability® HSC | TruStability® HSC |
| Packaging | Bulk | Bulk | Bulk | Bulk |
