HSCMRRN001PG2A3
lmages are for reference only.HSCMRRN001PG2A3
SENSOR 1PSIG 0.08" 12BIT 8SMD
Datasheet8-SMD, J-Lead, Dual Ports, Same Side
83,996 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 1PSI (6.89kPa) Vented Gauge Male - 0.08" (1.93mm) Tube, Dual 12 b 8-SMD, J-Lead, Dual Ports, Same Side
HSCMRRN001PG2A3
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | TruStability® HSC |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | HSCMRRN |
| Applications | Board Mount |
| Pressure Type | Vented Gauge |
| Operating Pressure | 1PSI (6.89kPa) |
| Output Type | I2C |
| Output | 12 b |
| Accuracy | ±0.25% |
| Voltage - Supply | 3V ~ 3.6V |
| Port Size | Male - 0.08" (1.93mm) Tube, Dual |
| Port Style | Barbed |
| Features | Amplified Output, Temperature Compensated |
| Termination Style | J Lead |
| Maximum Pressure | 10PSI (68.95kPa) |
| Operating Temperature | -20°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, J-Lead, Dual Ports, Same Side |
| Supplier Device Package | 8-SMD |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |

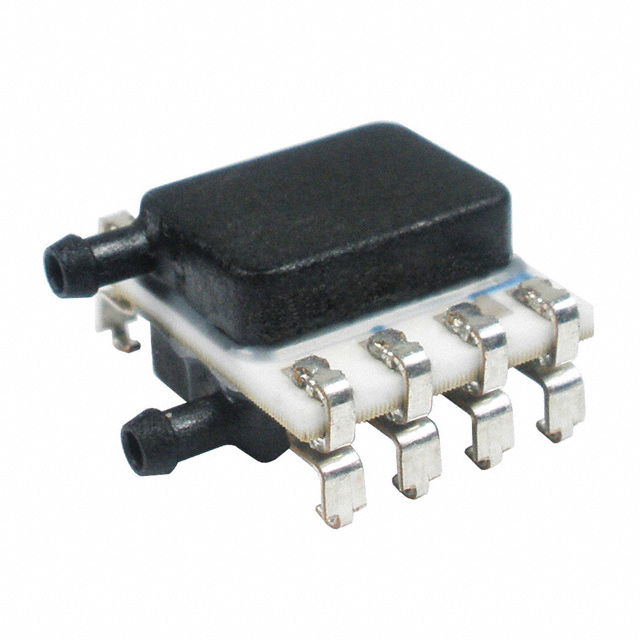

| Part Number | HSCMRRN001ND2A3 | HSCMRRN001ND2A5 | HSCMRRN001ND2A5 | HSCMRRN001NDAA5 |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR 0.04PSID 0.08" 12BIT 8SMD | SENSOR 0.04PSID 0.08" 12BIT 8SMD | SENSOR 0.04PSID 0.08" 12BIT 8SMD | SENSOR 0.04PSID 0.08" 4.5V 8SMD |
| Series | TruStability® HSC | TruStability® HSC | TruStability® HSC | TruStability® HSC |
| Packaging | Bulk | Bulk | Bulk | Bulk |
