HSCSNBN010MDAA3

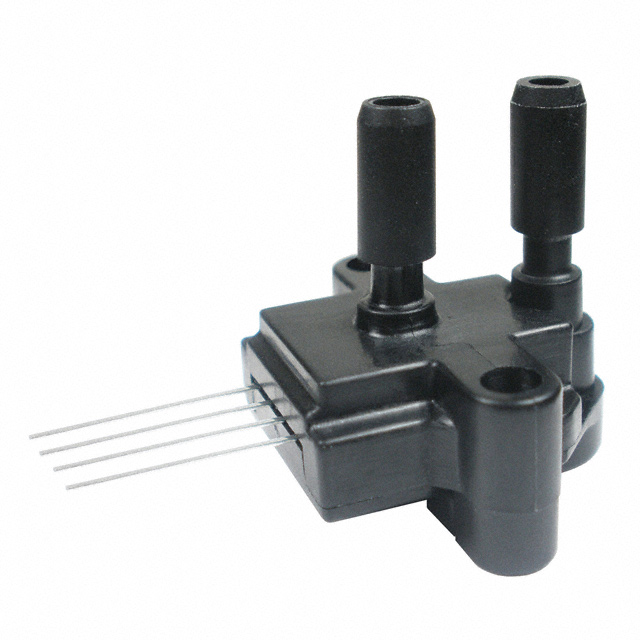

lmages are for reference only.HSCSNBN010MDAA3
SENSOR 0.15PSID 0.19" 2.97V 4SIP
Datasheet4-SIP, Dual Ports, Same Side
52,843 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor ±0.15PSI (±1kPa) Differential Male - 0.19" (4.8mm) Tube, Dual 0.33 V ~ 2.97 V 4-SIP, Dual Ports, Same Side
HSCSNBN010MDAA3
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | TruStability® HSC |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | HSCSNBN |
| Applications | Board Mount |
| Pressure Type | Differential |
| Operating Pressure | ±0.15PSI (±1kPa) |
| Output Type | Analog Voltage |
| Output | 0.33 V ~ 2.97 V |
| Accuracy | ±0.25% |
| Voltage - Supply | 3.27V ~ 3.33V |
| Port Size | Male - 0.19" (4.8mm) Tube, Dual |
| Port Style | Barbless |
| Features | Amplified Output, Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | ±10.88PSI (±75kPa) |
| Operating Temperature | -20°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP, Dual Ports, Same Side |
| Supplier Device Package | 4-SIP |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | HSCSNBN010MDAA5 | HSCSNBN010NDAA5 | HSCSNBN015PAAA5 | HSCSNBN015PGAA5 |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR 0.15PSID 0.19" 4.5V 4SIP | SENSOR 0.36PSID 0.19" 4.5V 4SIP | SENSOR 15PSIA 0.19" 4.5V 4SIP | SENSOR 15PSIG 0.19" 4.5V 4SIP |
| Series | TruStability® HSC | TruStability® HSC | TruStability® HSC | TruStability® HSC |
| Packaging | Bulk | Bulk | Bulk | Bulk |
