Product CatalogPart Number
HSHM-S055B-CES50082-TG30L
Manufacturer
3MDescription
CONN RECEPT 55POS 2MM PRESS-FIT
Datasheet
DatasheetPackage
-
In Stock
58,400 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
HSHM-S055B-CES50082-TG30L
HSHM-S055B-CES50082-TG30L
lmages are for reference only.Payment Methods
Delivery Services
55 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Through Hole, Right Angle
Quick Inquiry
HSHM-S055B-CES50082-TG30L
Specifications
| Category | Connectors, Interconnects - Backplane Connectors - Hard Metric-Standard |
| Manufacturer | 3M |
| Series | MetPak™ HSHM |
| Packaging | Bulk |
| RoHS Status | |
| Connector Type | Receptacle, Female Sockets |
| Connector Style | - |
| Number of Positions | 55 |
| Number of Positions Loaded | - |
| Pitch | 0.079" (2.00mm) |
| Number of Rows | 5 |
| Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Voltage Rating | - |
| Operating Temperature | -55°C ~ 125°C |
| Features | Shielded |
| Base Product Number | HSHM-S055 |
| Current Rating (Amps) | - |
Parts with Similar Specifications
| Product Attribute | |
|
 |
|

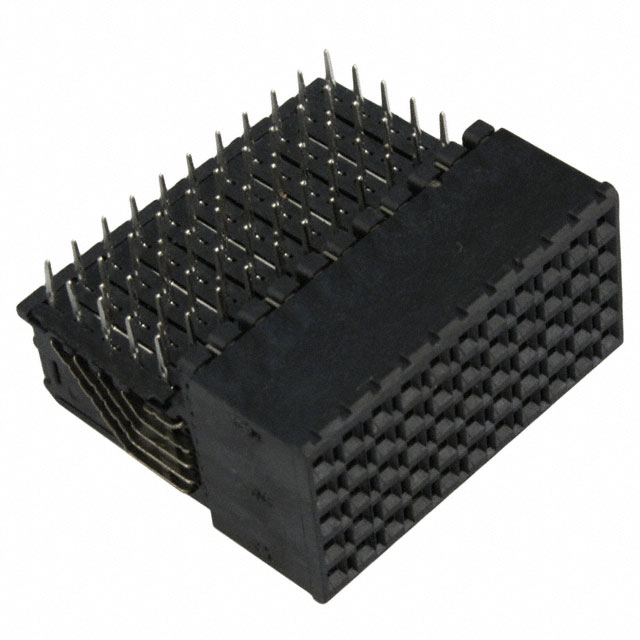

| Part Number | HSHM-S055B1-5AP1-TG30 | HSHM-S055B1-5AP1-TG30L | HSHM-S055B1-5AP1-TR40B | HSHM-H055B-CES50080-TG30L |
| Manufacturer | 3M | 3M | 3M | 3M |
| RoHS Status | ||||
| Description | CONN RECEPT 55POS 2MM PRESS-FIT | CONN RECEPT 55POS 2MM PRESS-FIT | CONN RECEPT 55POS 2MM PRESS-FIT | CONN HEADER 55POS 2MM PRESS-FIT |
| Series | MetPak™ HSHM | MetPak™ HSHM | MetPak™ HSHM | MetPak™ HSHM |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products
HSHM-H055B-CES50080-TG30L
3M
HSHM-H055B5-5CP1-TG30
3M
HSHM-H055B5-5CP1-TG30L
3M

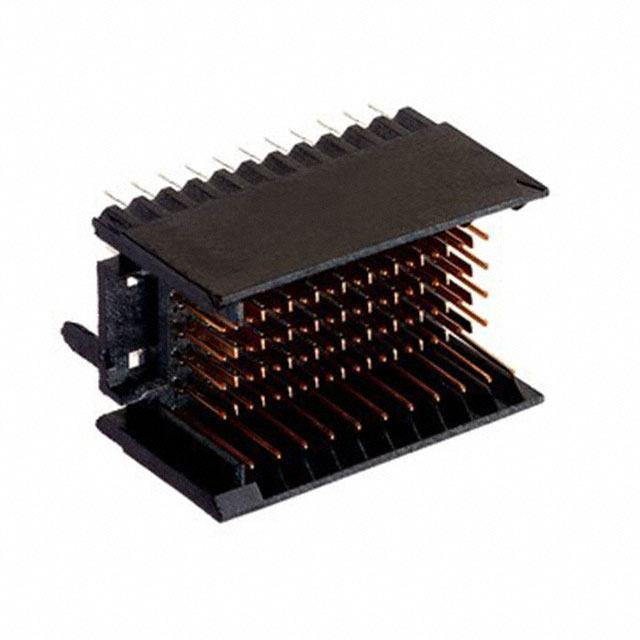

HSHM-H055CR4-5CP1-TG30
3M
HSHM-H055CR4-5CP1-TG30L
3M
HSHM-H055CR4-5CP2-TG30
3M
HSHM-H055CR4-5CP2-TG30L
3M
HSHM-H055CR5-5CP1-TG30
3M
HSHM-H055CR5-5CP1-TG30L
3M
HSHM-H088FR4-8CP1-TG30
3M
HSHM-H088FR4-8CP1-TG30L
3M

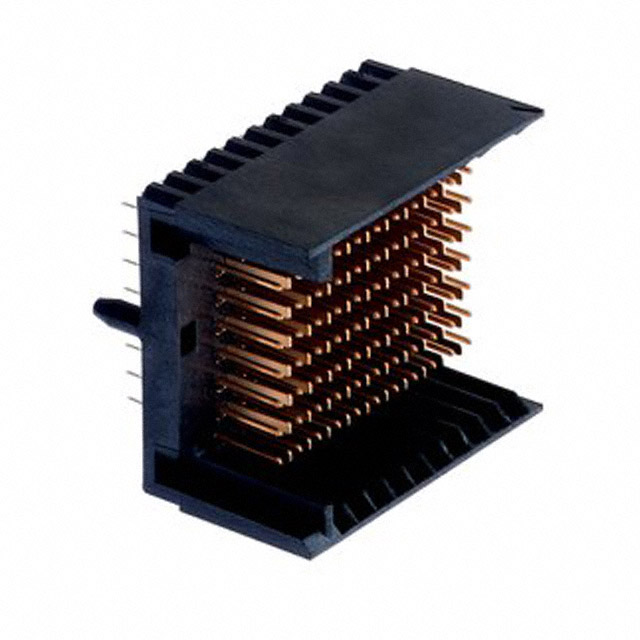

HSHM-H088FR5-8CP1-TG30
3M

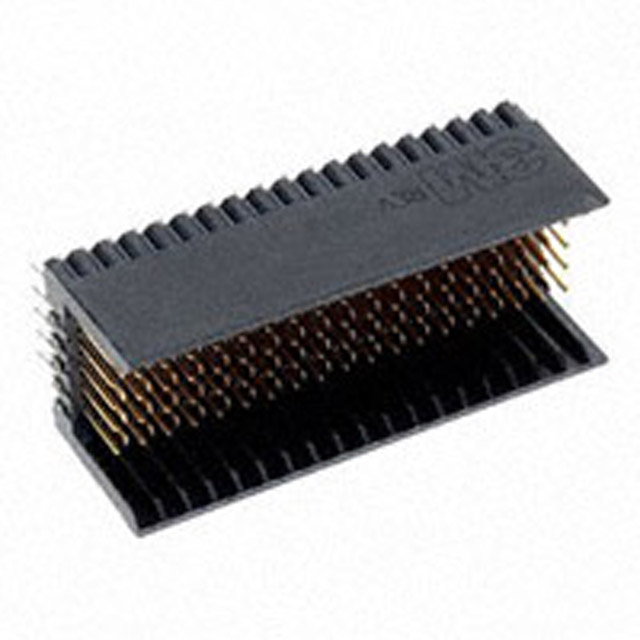

HSHM-H095B4-5CP1-TG30
3M
HSHM-H095B4-5CP1-TG30L
3M

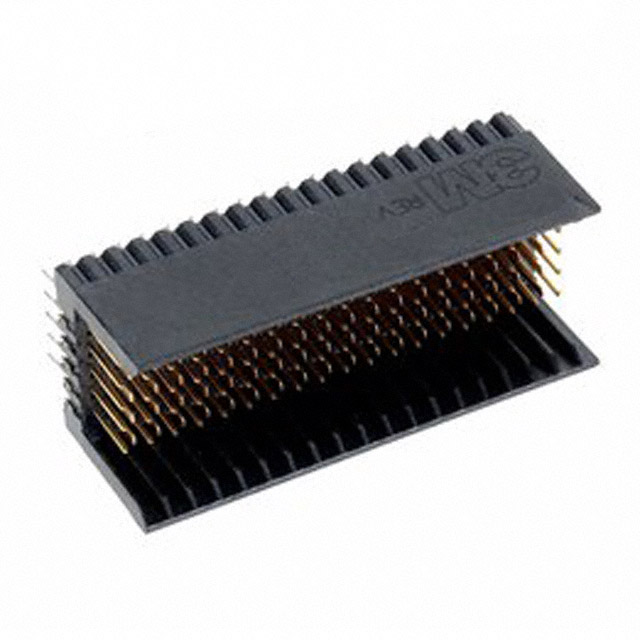

HSHM-H095B4-5CP2-TG30
3M
HSHM-H095B4-5CP2-TG30L
3M

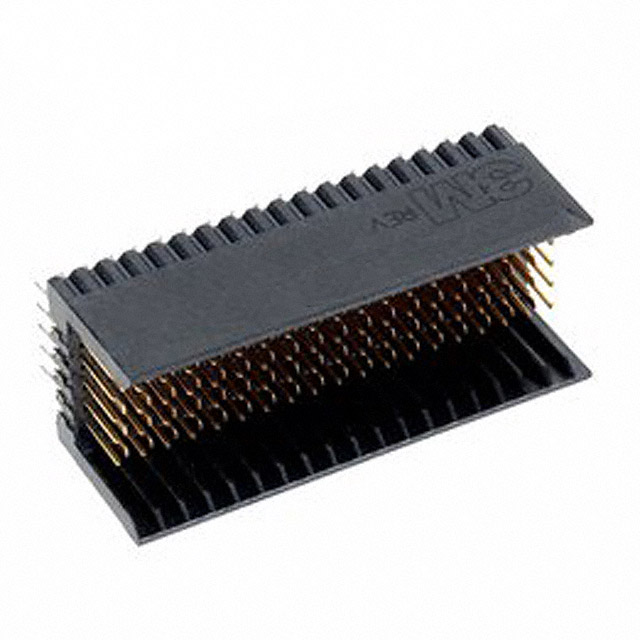

HSHM-H095B5-5CP1-TG30
