HSJ90
lmages are for reference only.HSJ90
FUSE,CLASS J,HIGH SPEED,200KA AC
DatasheetCylindrical, Blade Terminal (Bolt)
34,539 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
90A 600 VAC 500 VDC Fuse Cartridge Bolt Mount
HSJ90
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. |
| Series | HSJ |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Bolt Mount |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 90A |
| Voltage Rating - AC | 600 VAC |
| Response Time | Fast Blow |
| Applications | Electrical, Industrial |
| Features | - |
| Class | J |
| Approval Agency | CSA, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 100kA DC |
| Package / Case | Cylindrical, Blade Terminal (Bolt) |
| Size / Dimension | 1.142" Dia x 4.606" L (29.00mm x 117.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 500 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |

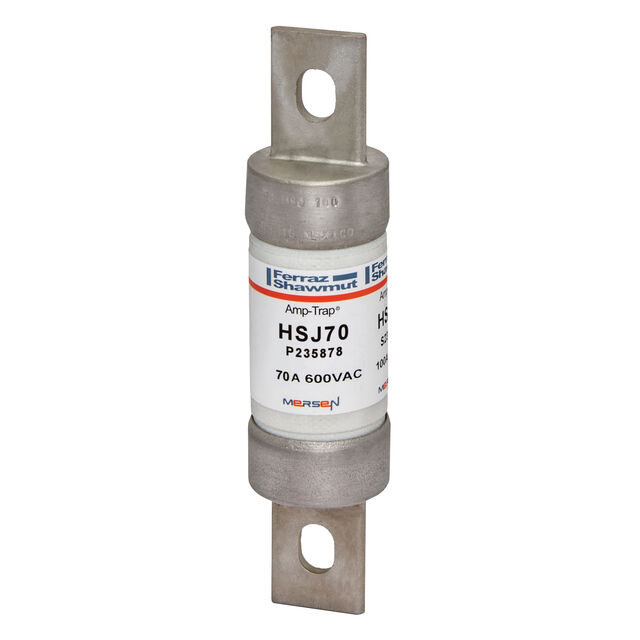

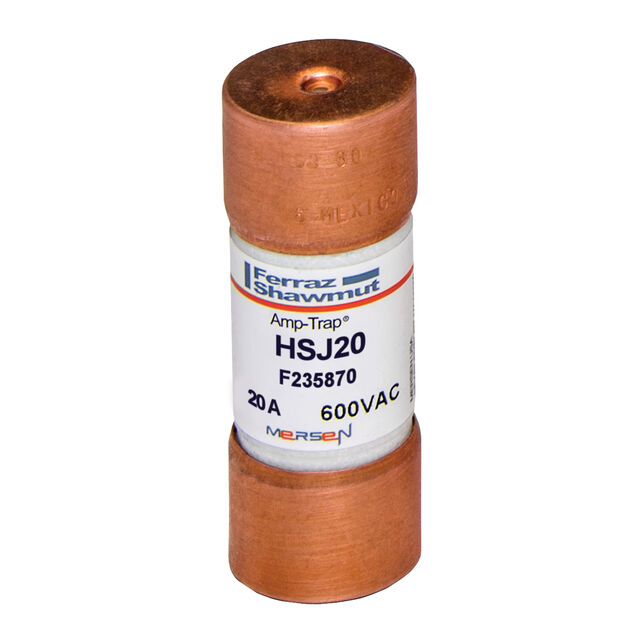

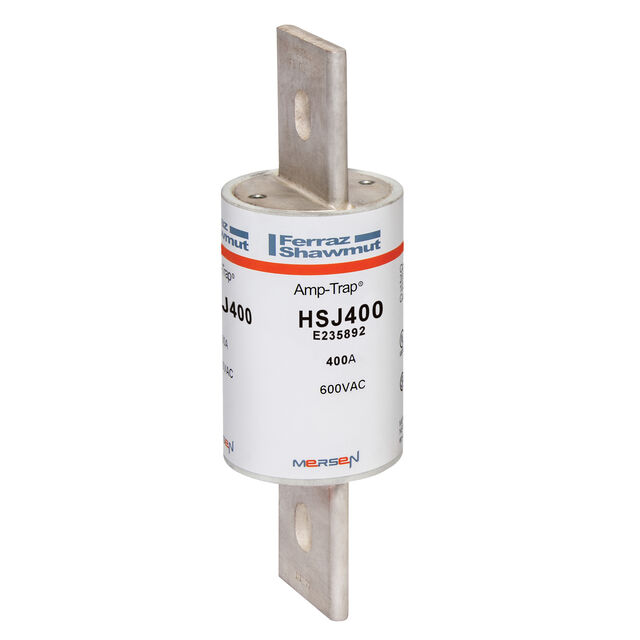

| Part Number | HSJ20 | HSJ70 | HSJ400 | HSJ150 |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE,CLASS J,HIGH SPEED,200KA AC | FUSE,CLASS J,HIGH SPEED,200KA AC | 600V 400A CLASS J HS FUSE | 600V 150A CLASS J HS FUSE |
| Series | HSJ | HSJ | HSJ | HSJ |
| Packaging | Box | Box | Box | Box |
