HSM536-66.6666

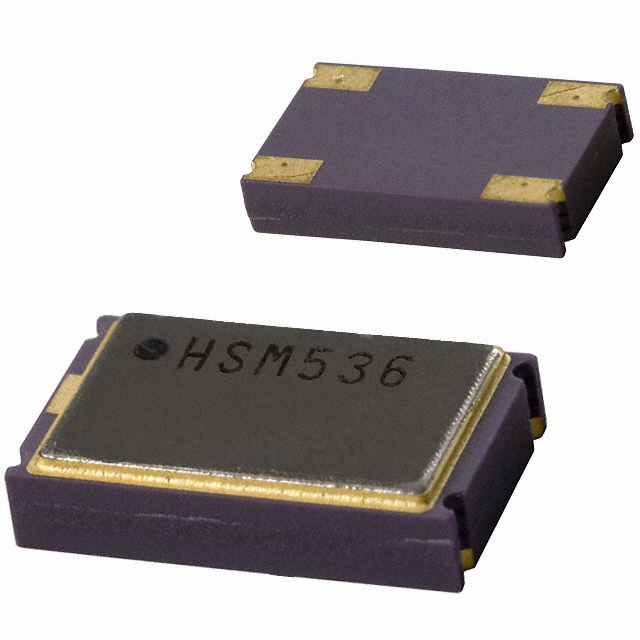

lmages are for reference only.HSM536-66.6666
XTAL OSC XO 66.6666MHZ HCMOS SMD
Datasheet4-SMD, No Lead
65,421 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
66.6666 MHz XO (Standard) HCMOS Oscillator 5V Enable/Disable 4-SMD, No Lead
HSM536-66.6666
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Connor Winfield |
| Series | HSM536 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 66.6666 MHz |
| Function | Enable/Disable |
| Output | HCMOS |
| Voltage - Supply | 5V |
| Frequency Stability | ±100ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | 0°C ~ 70°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 50mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.435" L x 0.250" W (11.05mm x 6.35mm) |
| Height - Seated (Max) | 0.105" (2.67mm) |
| Base Product Number | - |
| Product Attribute | |
|
|
|
| Part Number | HSM536-20.0000 | HSM536-25.0000 | HSM536-32.0000 | HSM536-50.0000 |
| Manufacturer | Connor Winfield | Connor Winfield | Connor Winfield | Connor Winfield |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC XO 20.0000MHZ HCMOS SMD | XTAL OSC XO 25.0000MHZ HCMOS SMD | XTAL OSC XO 32.0000MHZ HCMOS SMD | XTAL OSC XO 50.0000MHZ HCMOS SMD |
| Series | Connor Winfield | Connor Winfield | Connor Winfield | Connor Winfield |
| Packaging | Tube | Tube | Tube | Tube |
