Product CatalogPart Number
HSML-C110
Manufacturer
Broadcom LimitedDescription
LED ORANGE CLEAR CHIP SMD R/A
Datasheet
DatasheetPackage
2-SMD, No Lead
In Stock
72,176 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
HSML-C110
HSML-C110
lmages are for reference only.Payment Methods
Delivery Services
Orange 605nm LED Indication - Discrete 1.9V 2-SMD, No Lead
Quick Inquiry
HSML-C110
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Broadcom Limited |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Orange |
| Configuration | Standard |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 95mcd |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Current - Test | 20mA |
| Viewing Angle | 130° |
| Mounting Type | Surface Mount, Right Angle |
| Wavelength - Dominant | 605nm |
| Wavelength - Peak | 609nm |
| Features | - |
| Package / Case | 2-SMD, No Lead |
| Supplier Device Package | Chip LED |
| Size / Dimension | 3.20mm L x 1.50mm W |
| Height (Max) | 1.00mm |
| Base Product Number | HSML-C110 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | HSML-C020 | HSML-C120 | HSML-C130 | HSML-C150 |
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | LED ORANGE 0603 SMD | LED ORANGE CLEAR CHIP SMD R/A | LED ORANGE DIFFUSED SMD | LED ORANGE DIFFUSED SMD |
| Series | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
HSML-A100-Q00J1
Broadcom Limited
HSML-A100-Q0YJ1
Broadcom Limited
HSML-A100-R7PJ1
Broadcom Limited
HSML-A101-S00J1
Broadcom Limited

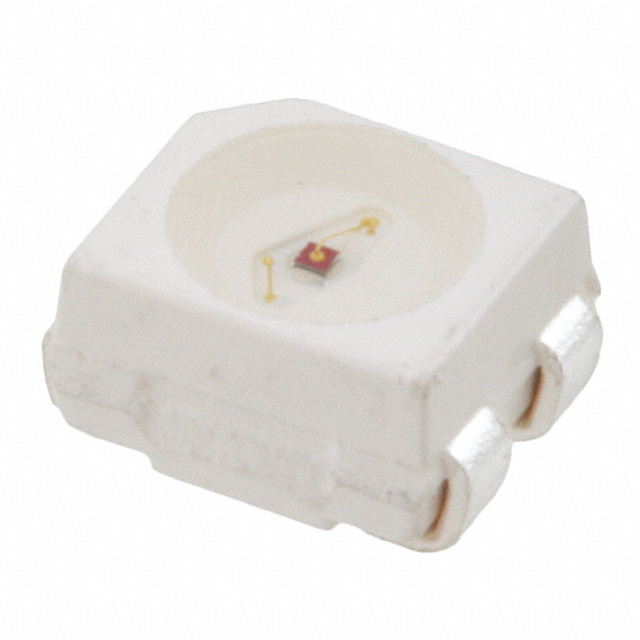

HSML-A401-U40M1
Broadcom Limited
HSML-A431-X90M1
Broadcom Limited
HSML-A461-W40M1
Broadcom Limited
HSML-C020
Broadcom Limited
HSML-C120
Broadcom Limited

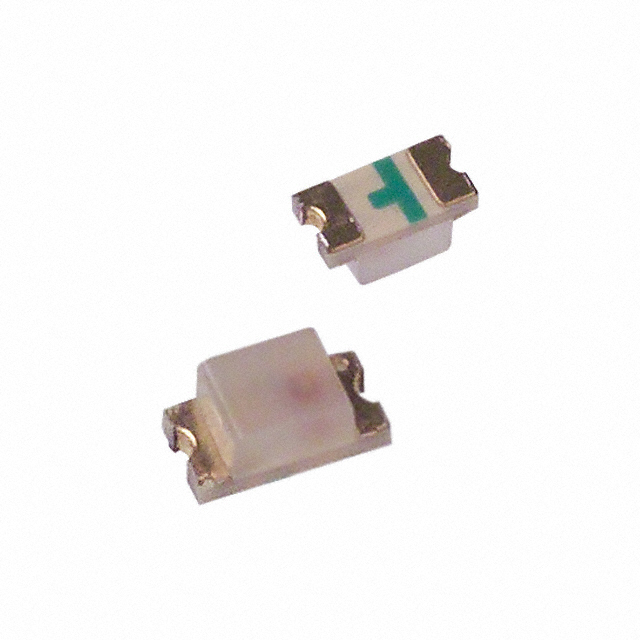

HSML-C130
