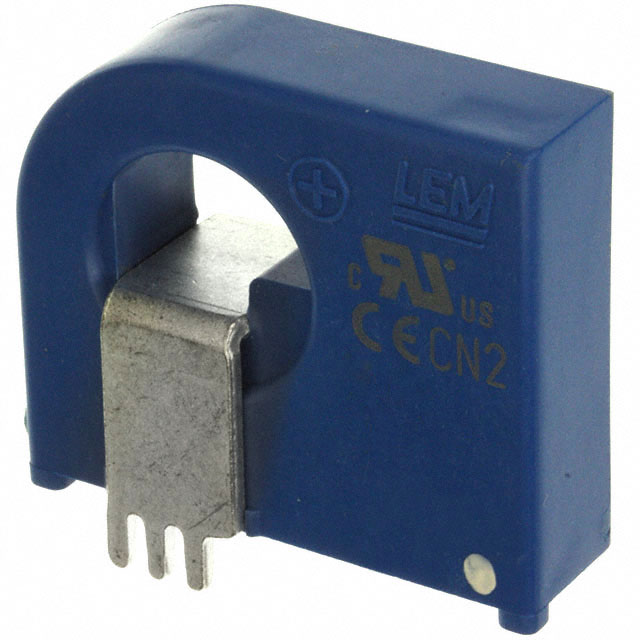

HTB 75-TP
lmages are for reference only.HTB 75-TP
SENSOR CURRENT HALL 75A AC/DC
DatasheetModule, Single Pass Through
23,312 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Current Sensor 75A 1 Channel Hall Effect, Open Loop Bidirectional Module, Single Pass Through
HTB 75-TP
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | LEM USA Inc. |
| Series | HTB |
| Packaging | Tray |
| RoHS Status | |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect, Open Loop |
| Current - Sensing | 75A |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | - |
| Frequency | DC ~ 50kHz |
| Linearity | ±1% |
| Accuracy | ±1% |
| Voltage - Supply | ±12V ~ 15V |
| Response Time | 3µs |
| Current - Supply (Max) | 15mA |
| Operating Temperature | -40°C ~ 80°C |
| Polarization | Bidirectional |
| Mounting Type | Through Hole |
| Package / Case | Module, Single Pass Through |
| Supplier Device Package | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | HTB 75-P | HTB 75-TP/SP3 | HTB 100-P | HTB 100-P/SP1 |
| Manufacturer | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. |
| RoHS Status | RoHS Compliant | |||
| Description | TRANSDUCER | TRANSDUCER | SENSOR CURRENT HALL 100A AC/DC | TRANSDUCER |
| Series | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. |
| Packaging | Bulk | Bulk | Tray | Bulk |
