Product CatalogPart Number
HTD1
Manufacturer
TDK-LambdaDescription
AC/DC CONVERTER 5V +/-12V 70W
Datasheet
DatasheetPackage
-
In Stock
29,802 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
HTD1
HTD1
lmages are for reference only.Payment Methods
Delivery Services
Linear AC DC Converters 3 Output 5V 12V -12V 100, 120, 220, 230, 240 VAC Input
Quick Inquiry
HTD1
Specifications
| Category | Power Supplies - External/Internal (Off-Board) - AC DC Converters - |
| Manufacturer | TDK-Lambda |
| Series | H |
| Packaging | Bulk |
| RoHS Status | |
| Type | Linear |
| Number of Outputs | 3 |
| Voltage - Input | 100, 120, 220, 230, 240 VAC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | -12V |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 6 A |
| Current - Output 2 | 1.7 A |
| Current - Output 3 | 1.7 A |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3.75 kV |
| Efficiency | 55% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 6.50" L x 4.02" W x 1.65" H (165.0mm x 102.0mm x 42.0mm) |
| Approval Agency | CE |
| Minimum Load Required | - |
| Voltage - Output 5 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Power (Watts) | 70W |
| Features | Adjustable Output, Remote Sense, Standby Output |
| Standard Number | - |
| Base Product Number | - |
| Current - Output 6 | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

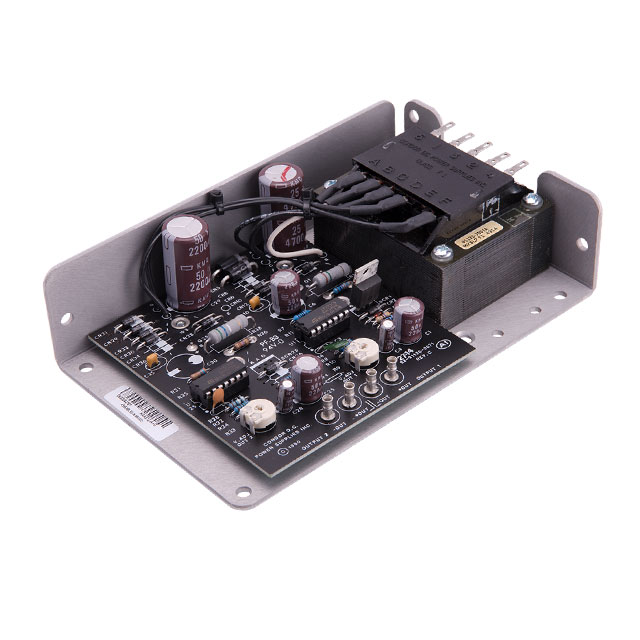

| Part Number | HD12-6.8-A+G | HWS150-24/A | HRP-300-12 | HAA524-A+G |
| Manufacturer | SL POWER / Advanced Energy | TDK-Lambda | MEAN WELL USA Inc. | SL POWER / Advanced Energy |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | AC/DC CONVERTER 12V 82W | AC/DC CONVERTER 24V 150W | AC/DC CONVERTER 12V 324W | AC/DC CONVERTER 5V 18-24 V |
| Series | Linear D | HWS (150W) | HRP-300 (300W) | Linear AA |
| Packaging | Bulk | Bulk | Box | Bulk |
