HTEH20161T-1R0MSR
lmages are for reference only.HTEH20161T-1R0MSR
FIXED INDUCTOR 1UH
Datasheet0806 (2016 Metric)
69,160 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 µH Unshielded Drum Core, Wirewound Inductor 4.3 A 36mOhm Max 0806 (2016 Metric)
HTEH20161T-1R0MSR
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Delta Electronics/Cyntec |
| Series | HTEH20161T |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Metal |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 4.3 A |
| Current - Saturation (Isat) | 4.8A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 36mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0806 (2016 Metric) |
| Supplier Device Package | 0806 (2016 Metric) |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Base Product Number | HTEH20161 |
| Product Attribute |  |
 |
 |
 |
| Part Number | HTEH20161T-2R2MSR | HTEH20161T-R47MSR | HTEH20120H-1R0MSR | HTEH20120H-2R2MSR |
| Manufacturer | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

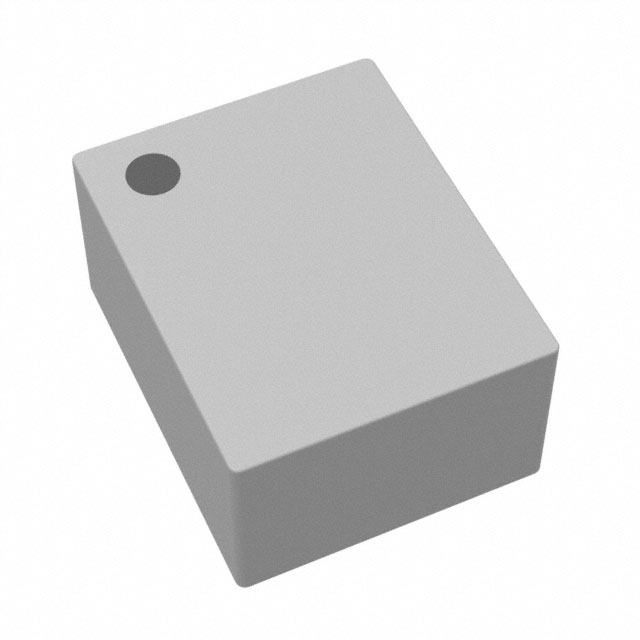

| Description | IND SMD 2.2UH HOT PRESSED CHOKE | FIXED INDUCTOR 0.47UH | FIXED IND 1UH 3.5A 55 MOHM SMD | IND SMD 2.2UH HOT PRESSED CHOKE |
| Series | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
