HV1812A150JXHATHV
lmages are for reference only.HV1812A150JXHATHV
CAP CER 15 PF 3KV C0G 1812
Datasheet1812 (4532 Metric)
19,402 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
15 pF ±5% 3000V (3kV) Ceramic Capacitor C0G, NP0 1812 (4532 Metric)
HV1812A150JXHATHV
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Vishay Vitramon |
| Series | HV |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 15 pF |
| Tolerance | ±5% |
| Voltage - Rated | 3000V (3kV) |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Voltage |
| Ratings | - |
| Applications | General Purpose |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 1812 (4532 Metric) |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.106" (2.70mm) |
| Lead Spacing | - |
| Lead Style | - |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

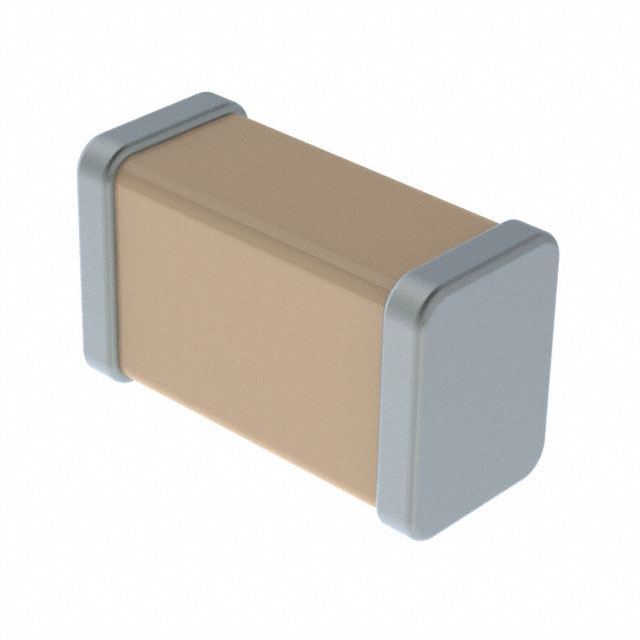

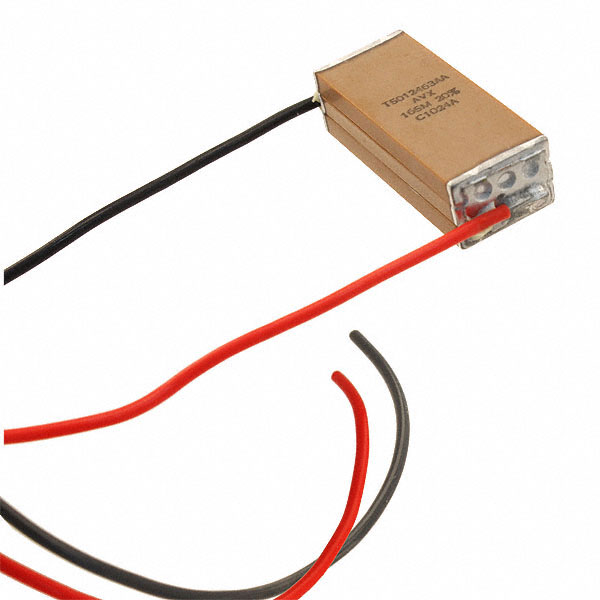

| Part Number | HV04AA253JAN240 | HV1808Y101KX6ATHV | HV1808Y121KX6ATHV | HV1808Y151KX6ATHV |
| Manufacturer | KYOCERA AVX | Vishay Vitramon | Vishay Vitramon | Vishay Vitramon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 0.025UF 1KV NP0 8-DIP | CAP CER 100 PF 6KV X7R 1808 | CAP CER 120 PF 6KV X7R 1808 | CAP CER 150 PF 6KV X7R 1808 |
| Series | KYOCERA AVX | Vishay Vitramon | Vishay Vitramon | |
| Packaging | Tube | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
