HV1825Y102KXVATHV

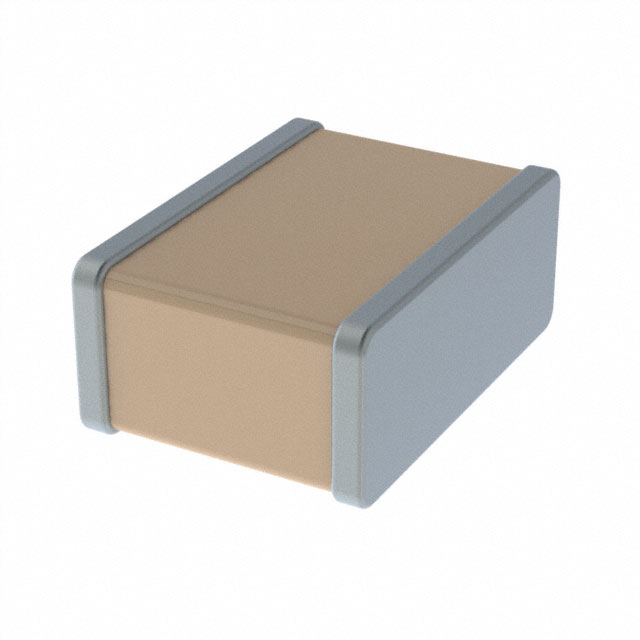

lmages are for reference only.HV1825Y102KXVATHV
CAP CER 1000PF 4KV X7R 1825
Datasheet1825 (4564 Metric)
45,038 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1000 pF ±10% 4000V (4kV) Ceramic Capacitor X7R 1825 (4564 Metric)
HV1825Y102KXVATHV
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Vishay Vitramon |
| Series | HV |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 1000 pF |
| Tolerance | ±10% |
| Voltage - Rated | 4000V (4kV) |
| Temperature Coefficient | X7R |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Voltage |
| Ratings | - |
| Applications | General Purpose |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 1825 (4564 Metric) |
| Size / Dimension | 0.177" L x 0.252" W (4.50mm x 6.40mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.106" (2.70mm) |
| Lead Spacing | - |
| Lead Style | - |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | HV1825Y102KXVARHV | HV1825Y102KX6ATHV | HV1825Y102KXMARHV | HV1825Y102KXMATHV |
| Manufacturer | Vishay Vitramon | Vishay Vitramon | Vishay Vitramon | Vishay Vitramon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 1000PF 4KV X7R 1825 | CAP CER 1.0 NF 6KV X7R 1825 | CAP CER 1000PF 5KV X7R 1825 | CAP CER 1000PF 5KV X7R 1825 |
| Series | Vishay Vitramon | Vishay Vitramon | ||
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
